Full control
Hydraulic models offer push-button operation, while manually operated mini dock levellers use a lever. Ideal for light-duty loading in warehouses and parcel centres.
Mini Levellers
EDGEDOCK ED-LA-HA Series

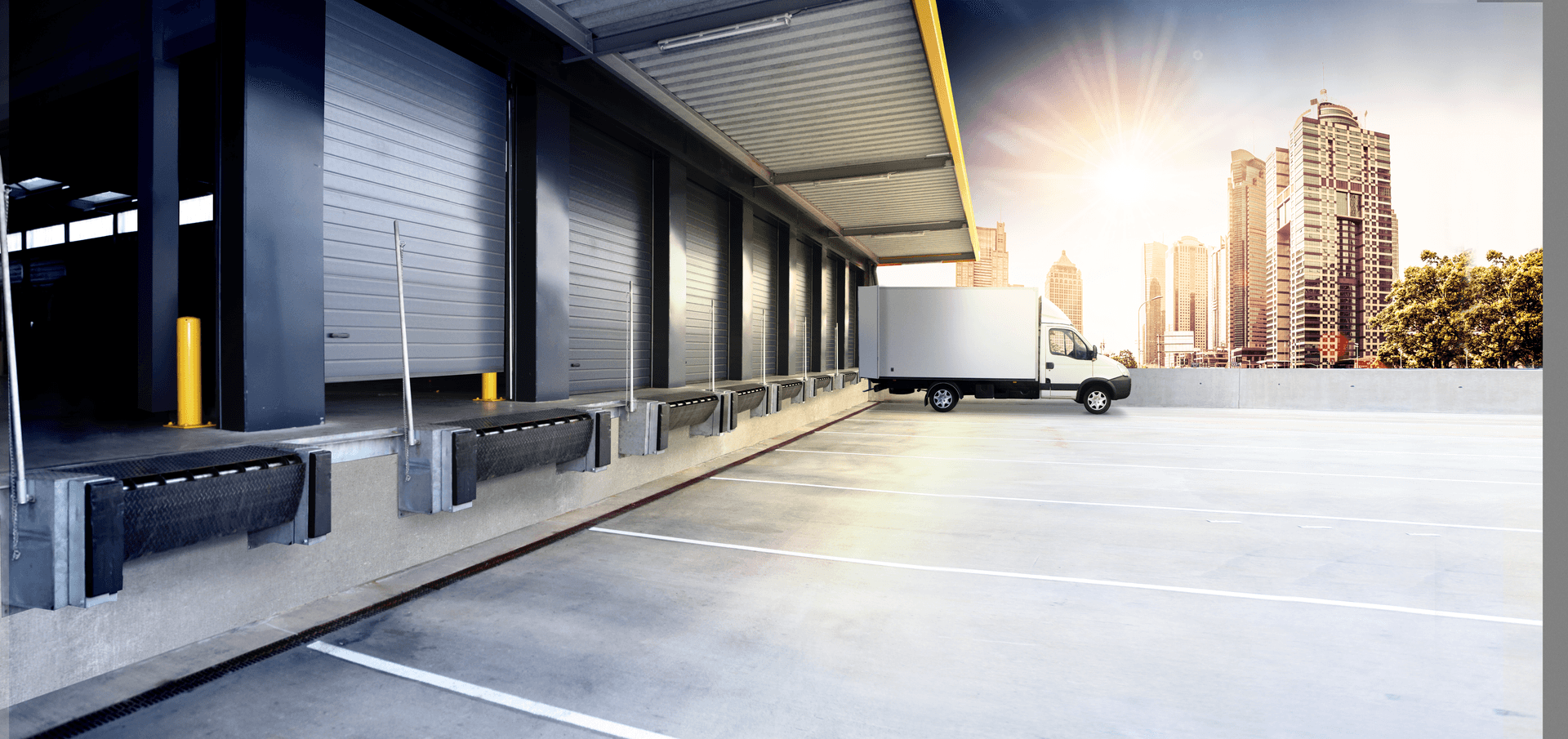

A range of edge-of-dock levellers for managing small height differences between the vehicle and building floor
Compact design
Minimal building works
Various models, hydraulically and manually operated
Suitable for material handling equipment with low gound clearnce
Ideal for retrofits
From a manually operated to a fully hydraulic EDGGEDOCK - ED.
Low investment delivers a high payback safety and efficiency
Applications
Easy 'edge of dock" installation
Hydraulic mini swing lip leveller (HA)
Manually operated dock leveller (LA)
Galvanised EDGEDOCK leveller
The Edgedock levellers series is the flexible solution for situations where small height differences between the vehicle and loading floor apply. Available in a hydraulically operated (ED/HA) or manually operated (LA).
Dynamic Capacity
6,000
kg
Max.
Platform Width
2,110
mm
Max.
Total Width
2,570
mm
Max.
Lip Length
700
mm
Max.
Product Features
Product Features
Lip design ensures smooth contact
Open hinge lip rests flush on the floor. Prevents dirt build-up and supports low-clearance internal transport.
Auto-locks in parked position
Leveller locks automatically in upright position after use, improving safety and maintaining clear dock access.
Safe for pallet trucks and trolleys
Bridges small height gaps effectively, supporting safe transitions for low-clearance equipment in confined spaces.
Optional features
Optional features
Dock bumper options
Available with standard rubber or optional polyethylene bumpers. Helps prevent vehicle or dock damage.
Range of platform sizes
Supports various vehicle and dock configurations.
Match working range to dock height
Customise bumper projection and leveller movement to suit site-specific requirements.
Optional HP or LP profiles
Choose high or low-profile versions based on clearance needs above and below the dock.
Safety & maintenance
Use, Maintenance & Norms
All mini dock levellers comply with EN 1398, covering their design, construction, installation, maintenance, and testing.
Accesoires
Accessories
Bumpers
PE bumpers instead of standard rubber bumpers
Extra 500 mm Safety Barriers
Creating distance to keep yard personeel and drivers safe
Stertil Standard Controls (SSC)
Lockable main switch with one-push button operation
Specifications
ED
Operation
Hydraulically operated via a single push-button control box.
Dynamic Load Capacity
6 tonnes
Safety Distance
500 mm safey fence between docked vehicle and leveller.
Park Position
Automatic lock in upright position when not in use.
Installation
-
Compliance
EN 1398:2009 (European dock leveller safety standard)
Machinery Directive 2006/42/EC
Low Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC
IP Ratings: Motor IP 54, Control Box IP 55
Conversion Option
-
Working Range
Above Dock: Up to 100 mm (high profile) or 50–80 mm (low profile).
Below Dock: 200 mm.
Surface
-
HA
Operation
Hydraulically operated via a single push-button control box.
Dynamic Load Capacity
6 tonnes
Safety Distance
Can be pit-mounted if required.
Park Position
-
Installation
-
Compliance
EN 1398:2009 (European dock leveller safety standard)
Machinery Directive 2006/42/EC
Low Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC
IP Ratings: Motor IP 54, Control Box IP 55
Conversion Option
-
Working Range
Above Dock: Up to 100 mm (high profile) or 50–80 mm (low profile).
Below Dock: 200 mm.
Surface
-
LA
Operation
Manually operated using a lever.
Dynamic Load Capacity
6 tonnes
Safety Distance
-
Park Position
-
Installation
Can be pit mounted if required
Compliance
Meets EN 1398:2009 safety standards.
Conversion Option
Can be upgraded to hydraulic operation using a dedicated conversion kit.
Working Range
-
Surface
Anti-slip for increased safety.
