Ergonomic use

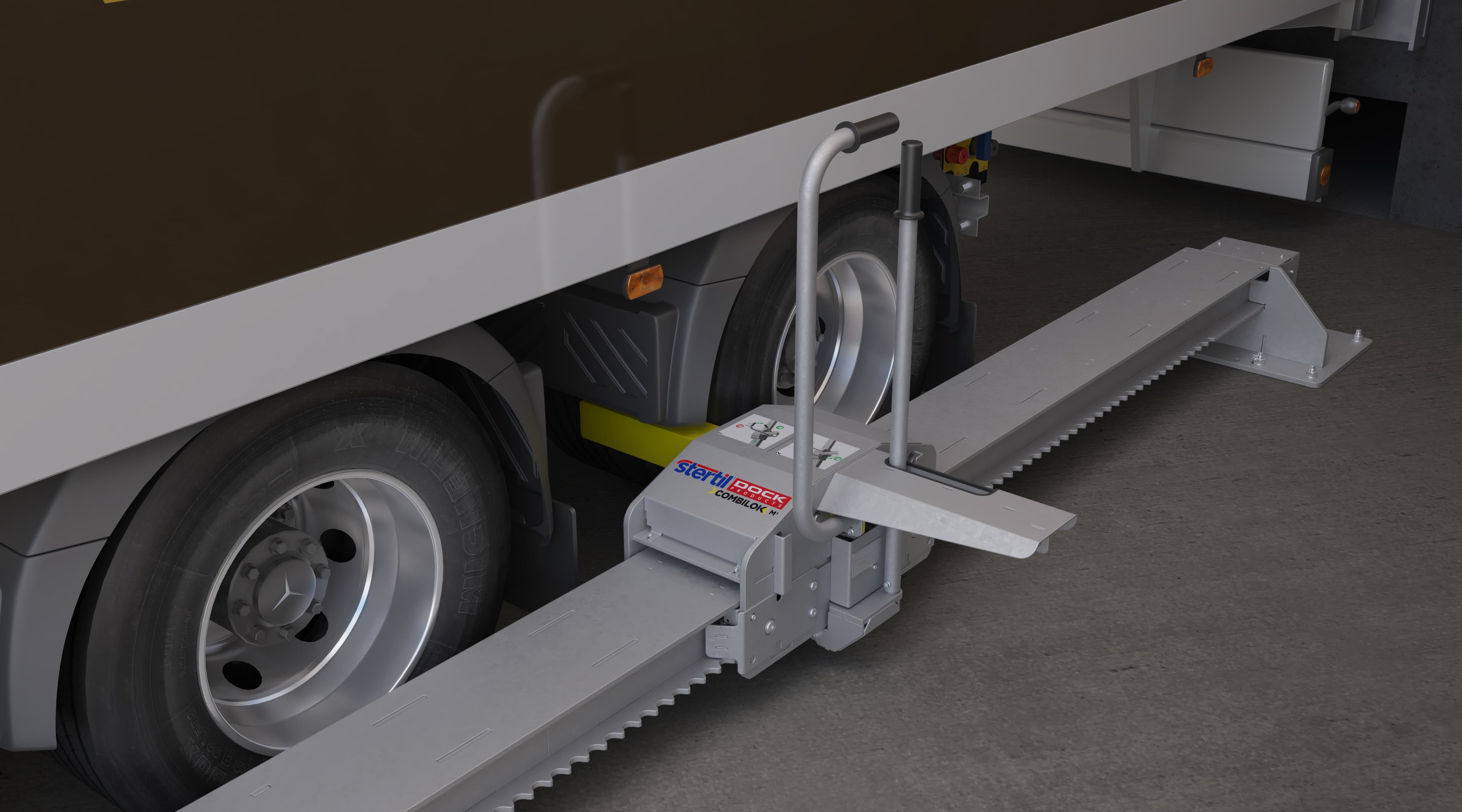

Driver positions the M1 using the handles. Standing safely on both feet in an upright position. Wheel-detection sensor for correct blocking arm position.
Manual vehicle restraint system

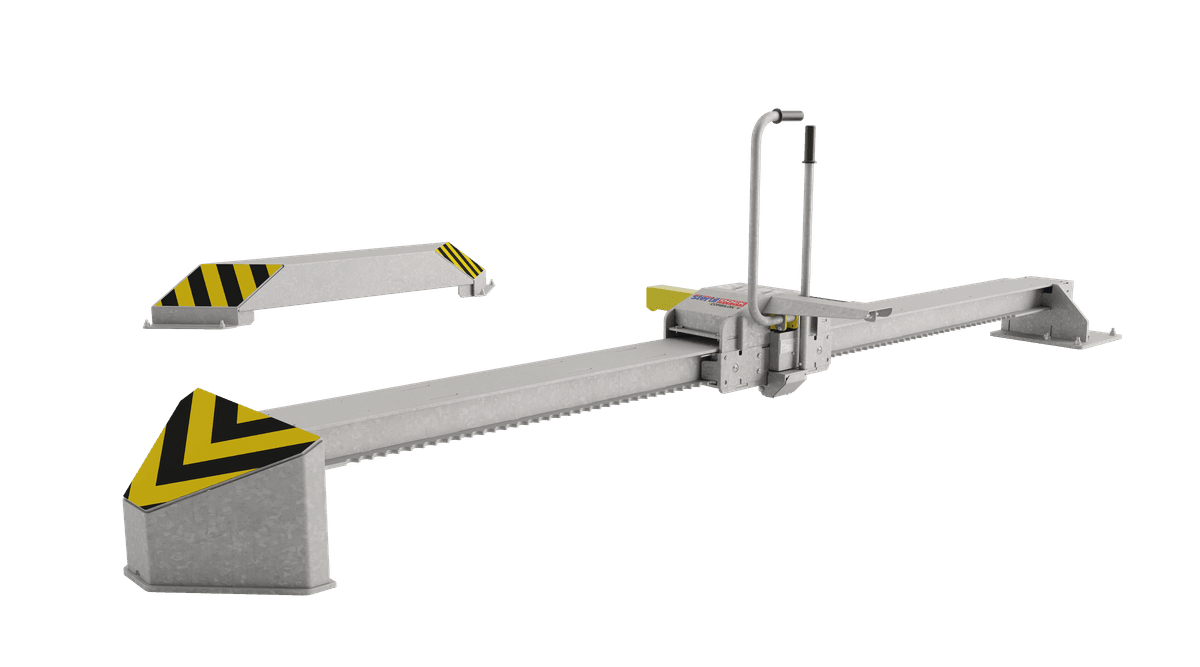

COMBILOK® M1
The COMBILOK M1 universal manual vehicle restraint is a low investment safety system.
Prevents premature drive-off and vehicle creep
Driver activated and warehouse controlled
For a broad range of vehicles 370 -430 mm restraining height
Easy to install and maintain
Maximum return of investment in terms of safety and cost
For effective and easy self-operation by the vehicle driver. Minimises risks and enhances safety for the warehouse staff and vehicle drivers.
Applications

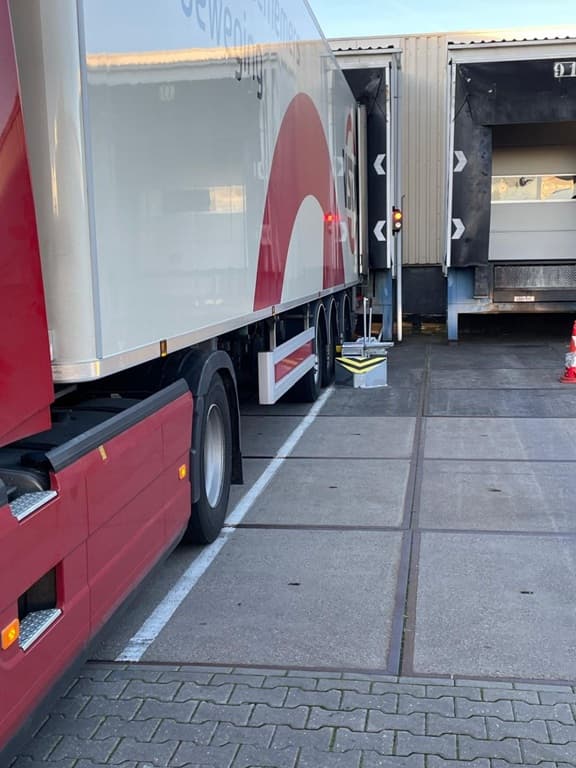

Secure trucks and trailers
Using intuitive Stertil Controls

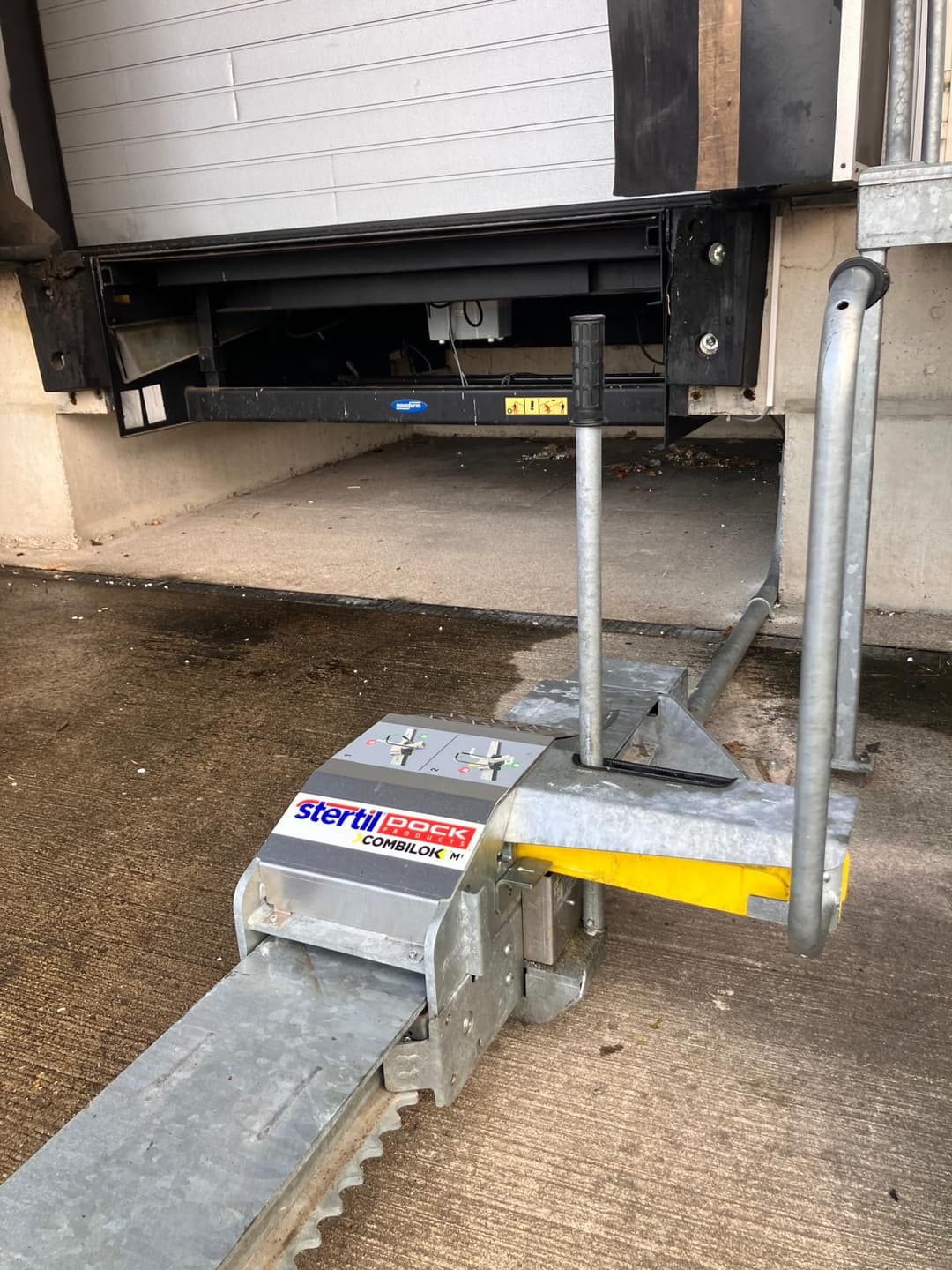

Weatherproof construction
All critical components are weather-protected

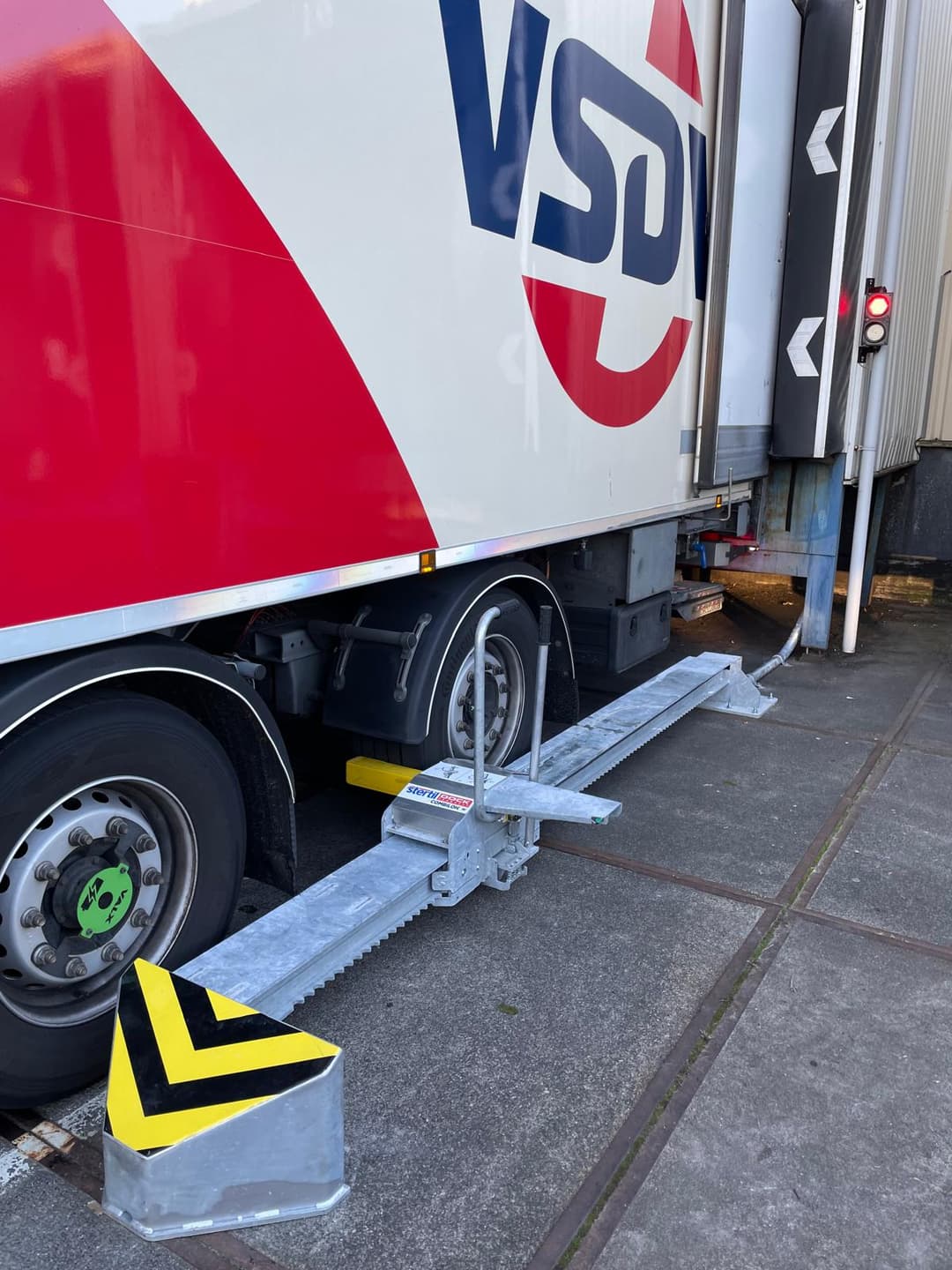

Compact spaces
Restrain vehicles effectively in compact spaces
Enhances the safety and efficiency of loading and unloading operations.
Length
4,500
mm
Unit
Pull-Out Force
150
kN
Capacity
Travel Range
3,200
mm
Max.
Product Features
Product Features
Hydraulic-free system
Operates on single phase 230 V net electricity. Certification: Class 3 (FEM 11.005), EC directive 2006/42/EC
Durable, long lifetime system
Safe, robust and compact vehicle restraint system. Nearly all parts made from galvanised steel.
Unauthorised-removal protection
Operator inside the warehouse locks and unlocks the M1. Electromagnetic lock to prevent unauthorised removal of the lock-bar.
Optional Features
Optional Features

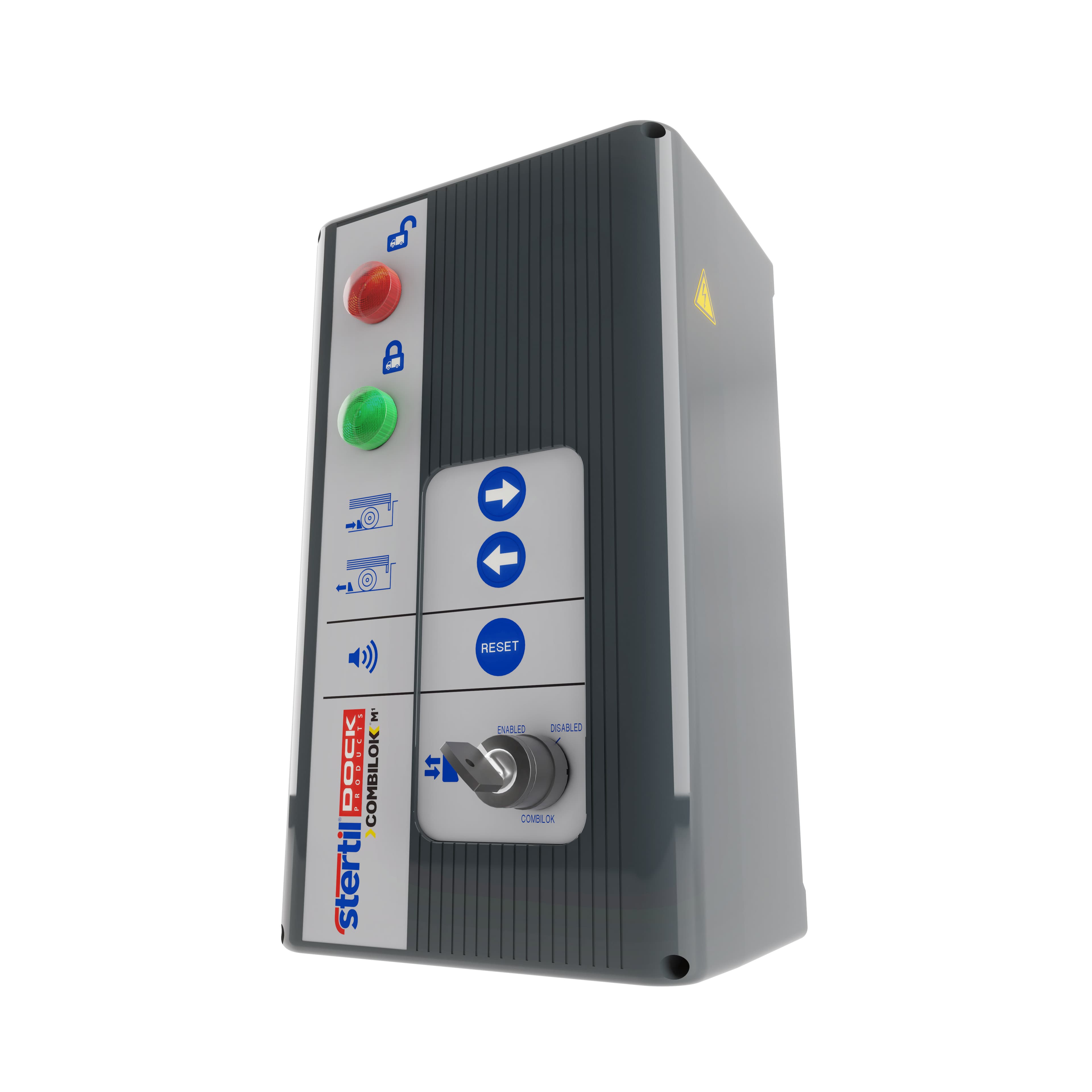

Integrated complete control
Control box for interlocking of leveller and door.

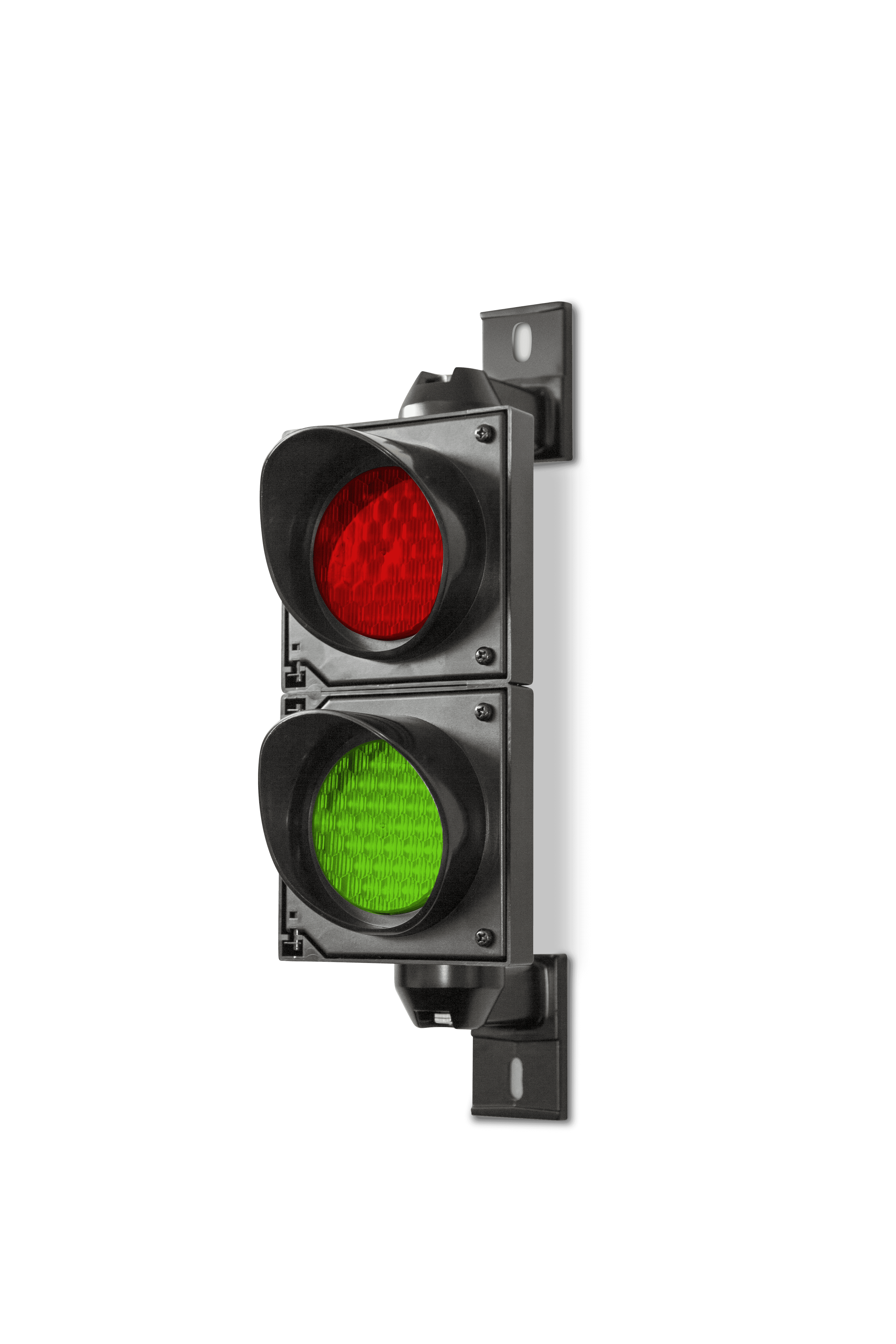

Internal traffic light
Red/green traffic internal traffic light for extra communication between driver and operators in warehouse or distribution centre.
