Adapts to various vehicle heights
Top cushion extends up to 1350 mm, enabling tight contact across a wide range of trailer sizes.

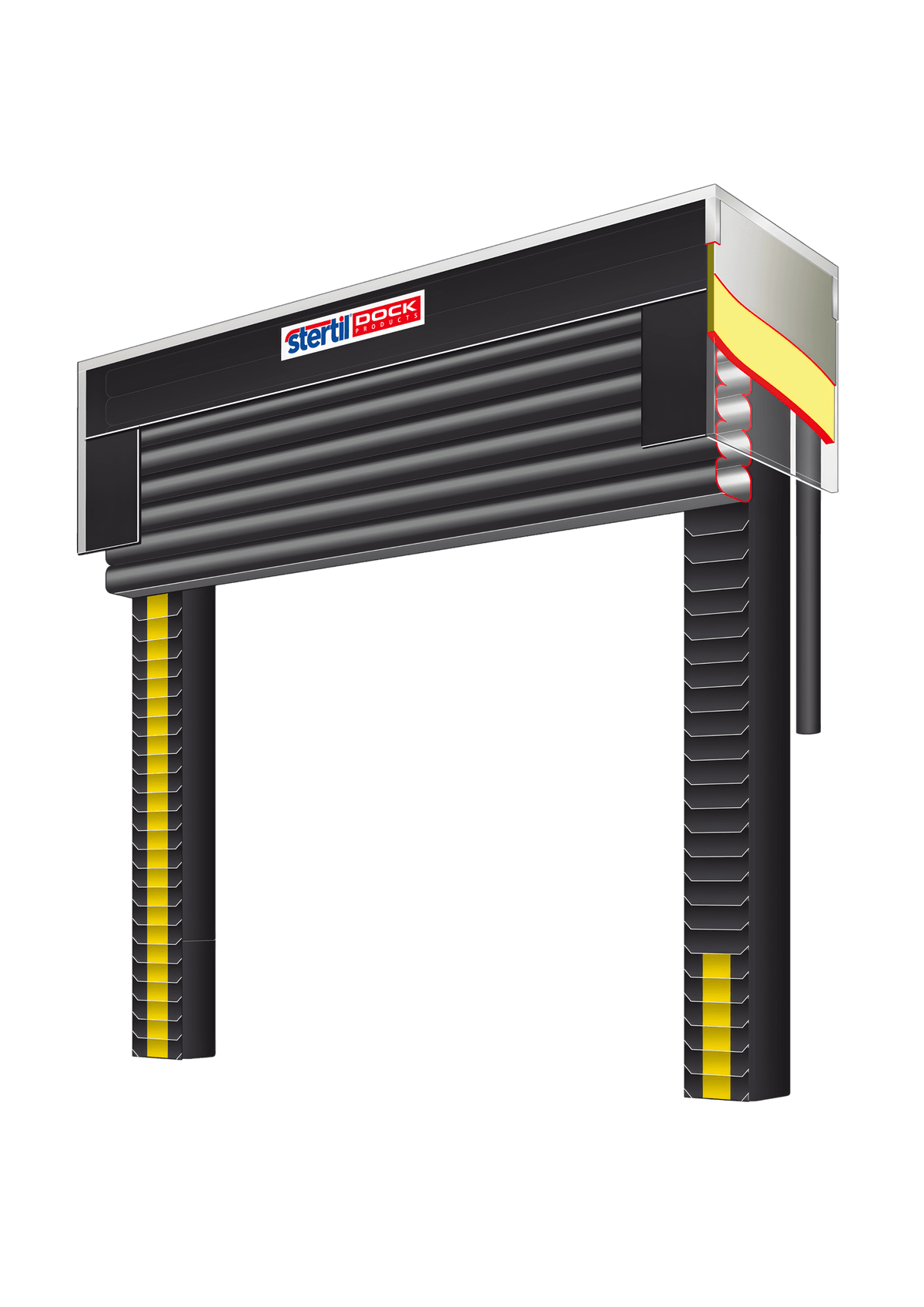

Cushion and Inflatable Dock Shelters
TP / TI- Series
The TI and TP- Series, cushion and inflatable dock shelters, (TI) virtually airthight sealing, for a varity of containers and vehicles
Reduces loading bay opening: 270–450 mm
Sealing performance meets BREEAM requirements
Bevelled and tapered cushions for safe docking
Inflatable cushion adapts to vehicle height
-40 °C resistant materials for durability
A flexible solution with optiumum sealing TP/TI Dock shelters from the T-Series offer durable, customised solutions
Applications
Cushion Shelters

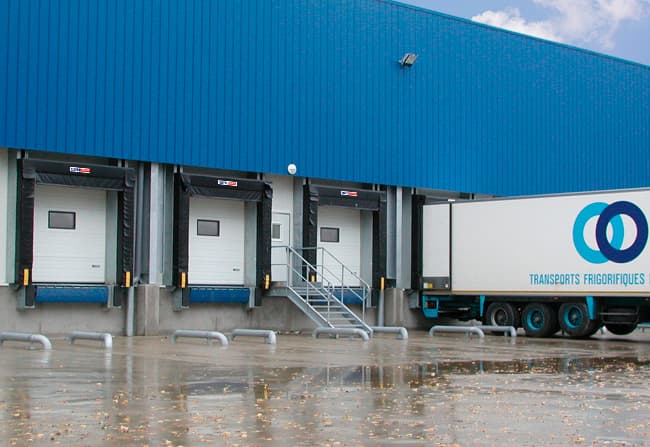

Cushion Shelters TP Series
Protection against the weather
Cushion Shelters - TP series
Durable Cushion Coatings - PVC or Powerflex
TP series is a durable cushion dock shelter designed for climate-controlled logistics. TI-Series is an inflatable dock shelter offering airtight sealing and fast operation.
Overall Width
3,500
mm
Max.
Overall Height
3,600
mm
Max.
Top Cushion Height*
1,350
mm
*Inflatable TI Model
Product Features
Product Features
Maintains hygiene in sensitive areas
Seamless cushion design prevents gaps. Supports compliance with hygiene standards in cold storage or clean-loading zones.

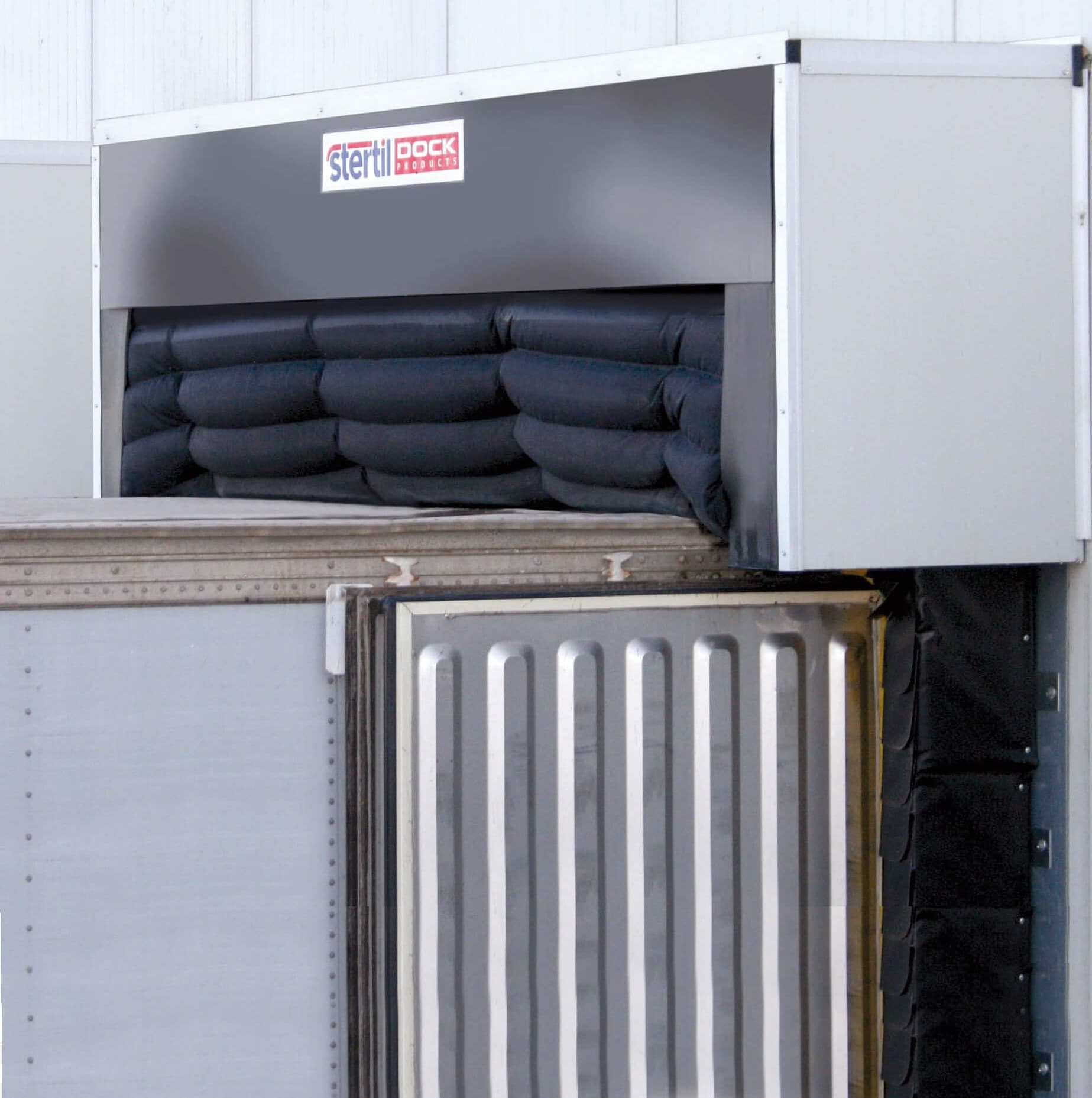

Inflates quickly for efficient sealing
Top cushion inflates in less than 15 seconds. Rapid operation shortens loading times and minimises energy loss.
Withstands freezing and sloped docks
Foam core maintains shape in -40 °C environments. Optional bevelled cushions improve fit on inclined platforms.
Optional Features
Optional Features
Extend cushion reach and impact resistance
Optional armoured front cushions add durability in busy operations. Two-section side cushions simplify maintenance.
Improve positioning with visual guidance
Bright yellow markings help align trailers precisely, reducing misdocking and speeding up turnaround.
Add sealing without a leveller present
Lower cushion option enables full perimeter sealing, even when no dock leveller is installed.

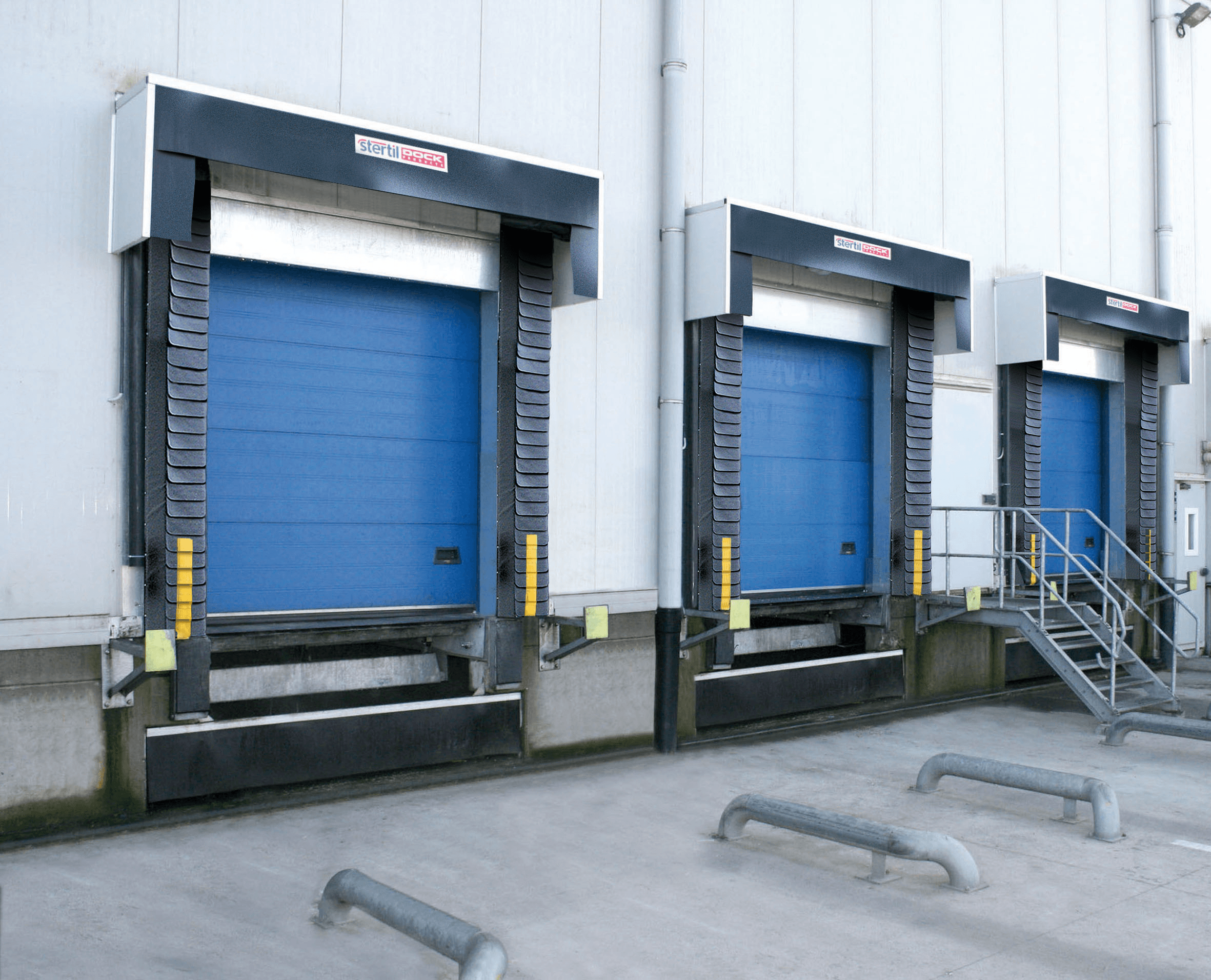

Configure to dock width, height and depth
Full range of cushion sizes and projections available. Includes TP and TI versions to fit your specific layout.
Specifications
TP-Series
Overall width
800 mm to 3100 mm
Overall height
2600 mm to 3200 mm
Height of top cushion
300 mm
Projection of top cushion
270 mm
Width of side cushion
300 mm
Projection of side cushions
270 mm
Projection of top panel
Height of inflated top cushion
TI-Series
Overall width
3500 mm
Overall height
3600 mm
Height of top cushion
Projection of top cushion
Width of side cushion
300 mm
Projection of side cushions
270 mm
Projection of top panel
650 mm
Height of inflated top cushion
1350 mm
Accesoires
Accessories

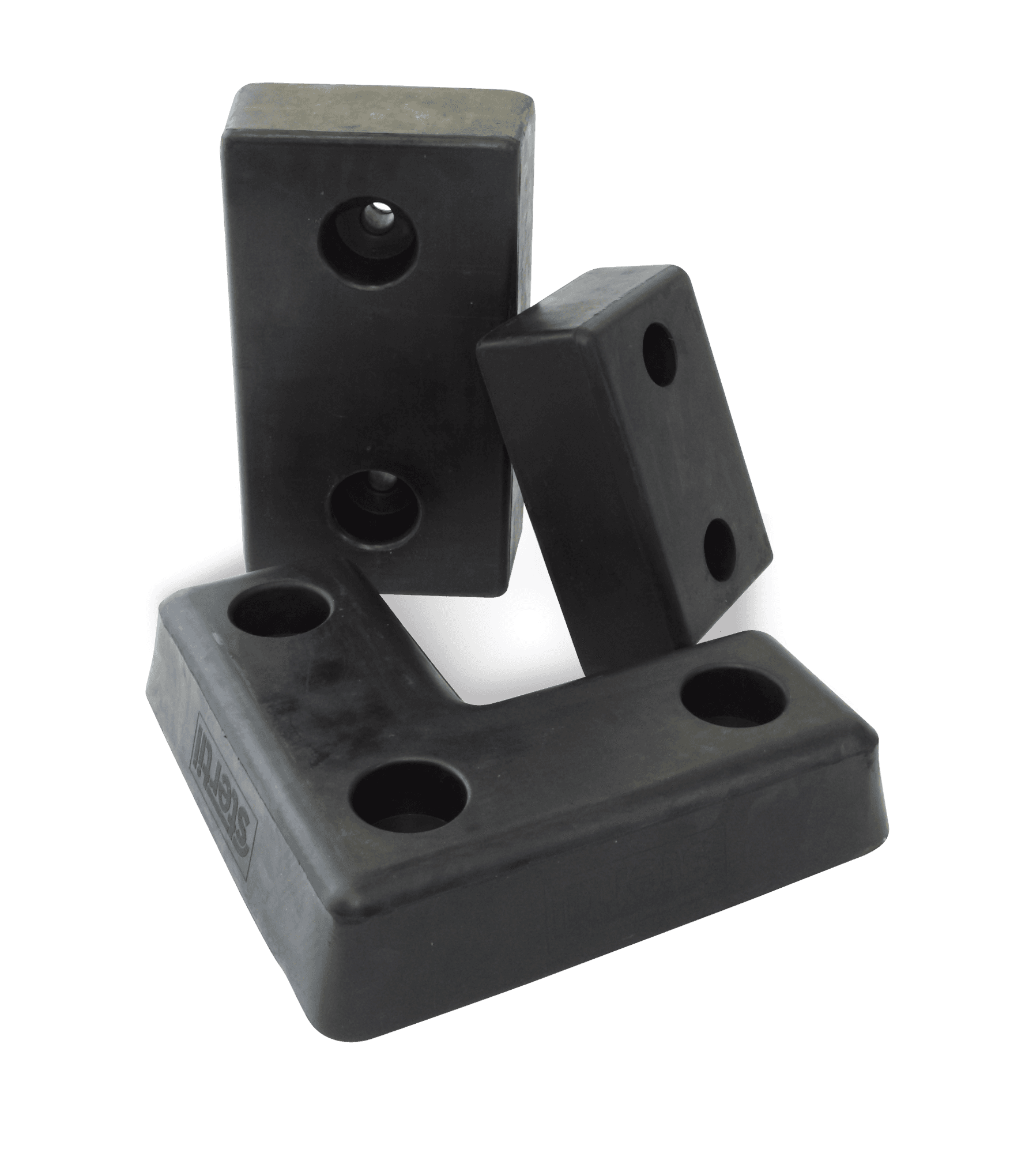

Rubber Bumper
Wide range of bumpers
Dock traffic Lights
LED lighting for in or outside building

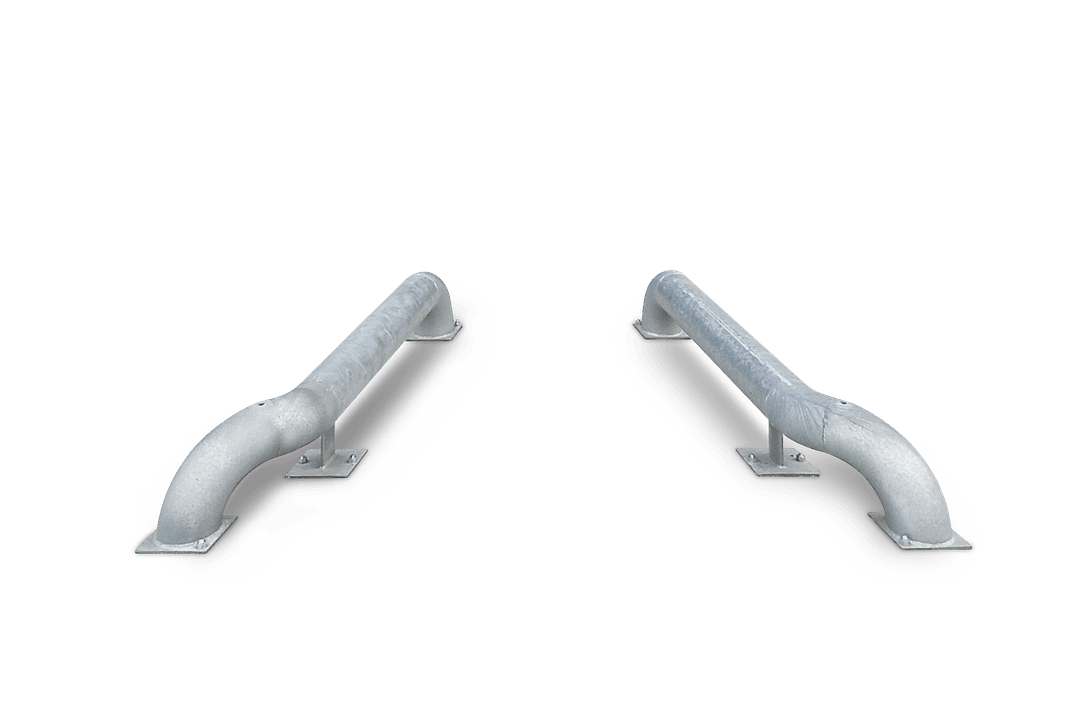

Wheel Guides
For accurate positioning
