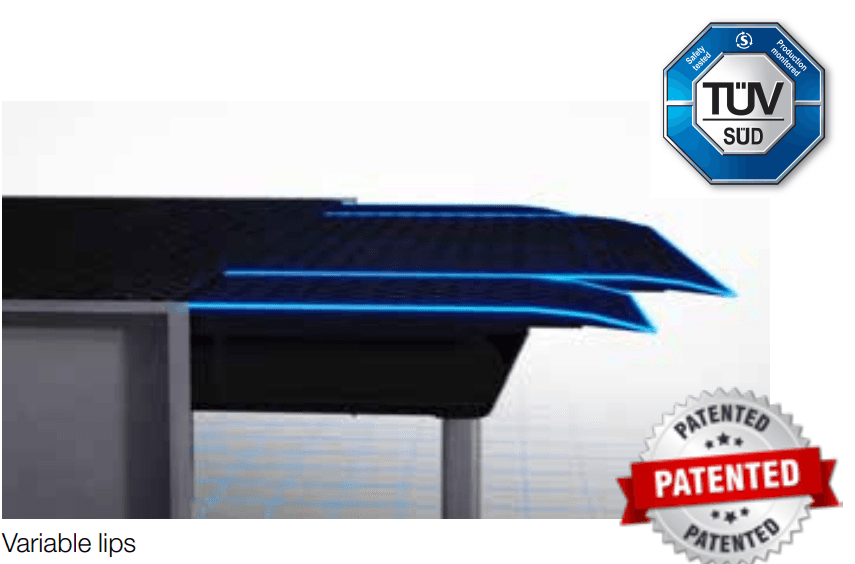

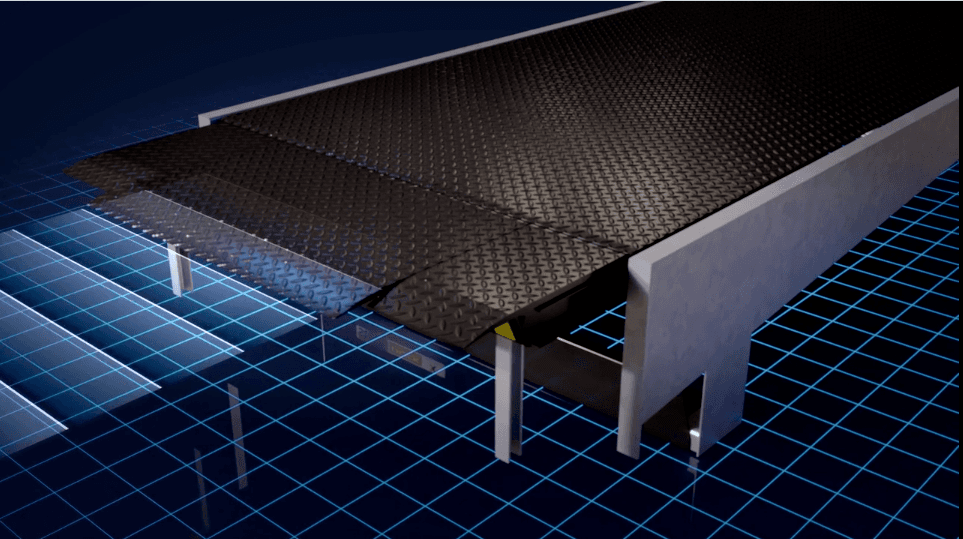

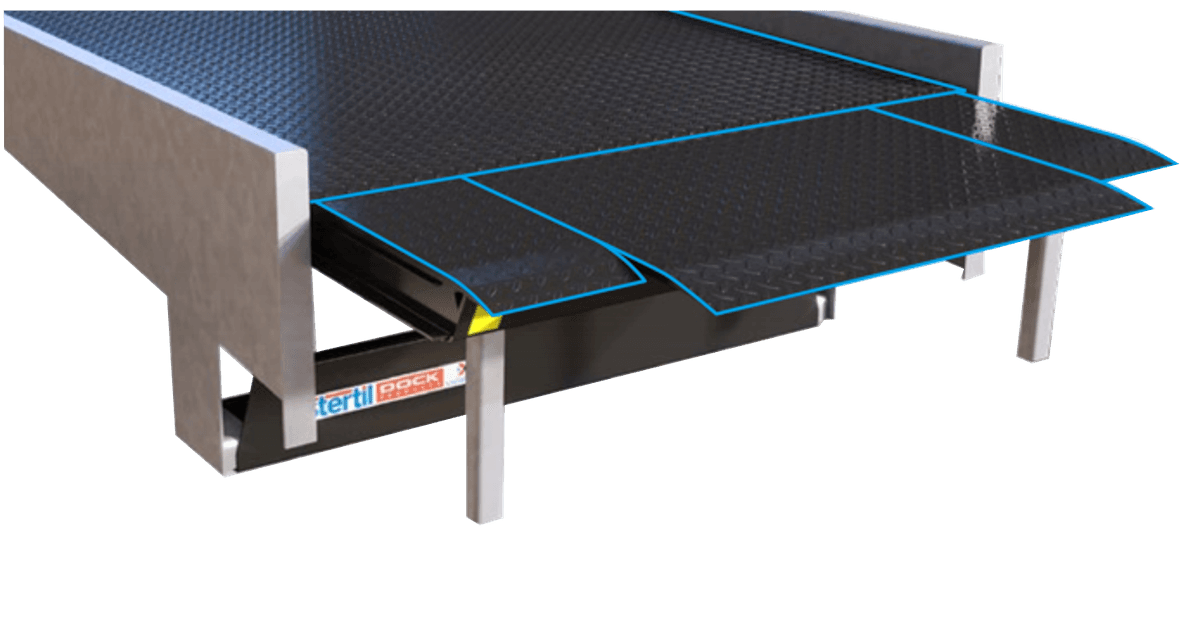

3‑section lip for all vehicles
Three-part telescopic lip enables precise alignment with various vehicle widths. Improves speed and loading accuracy.
Variable Telescopic Lip Leveller
VARIFLEET®
VARIFLEET® telescopic lip leveller for accurate positioning, ideal commerical vans, LGV and trailers.
Dynamic capacity: 2, 6, 8 tonnes, 3-section lip
For trucks and vans with different bed heights & widths
Built-in weight pressure compensation for vans
Ideal for cross-docking and parcel industry
Durable, long lifespan
Ensure smooth loading for all vehicle types. VARIFLEET improves workflow while preventing floor and equipment damage. Suitable for new builds and retrofits.
Applications

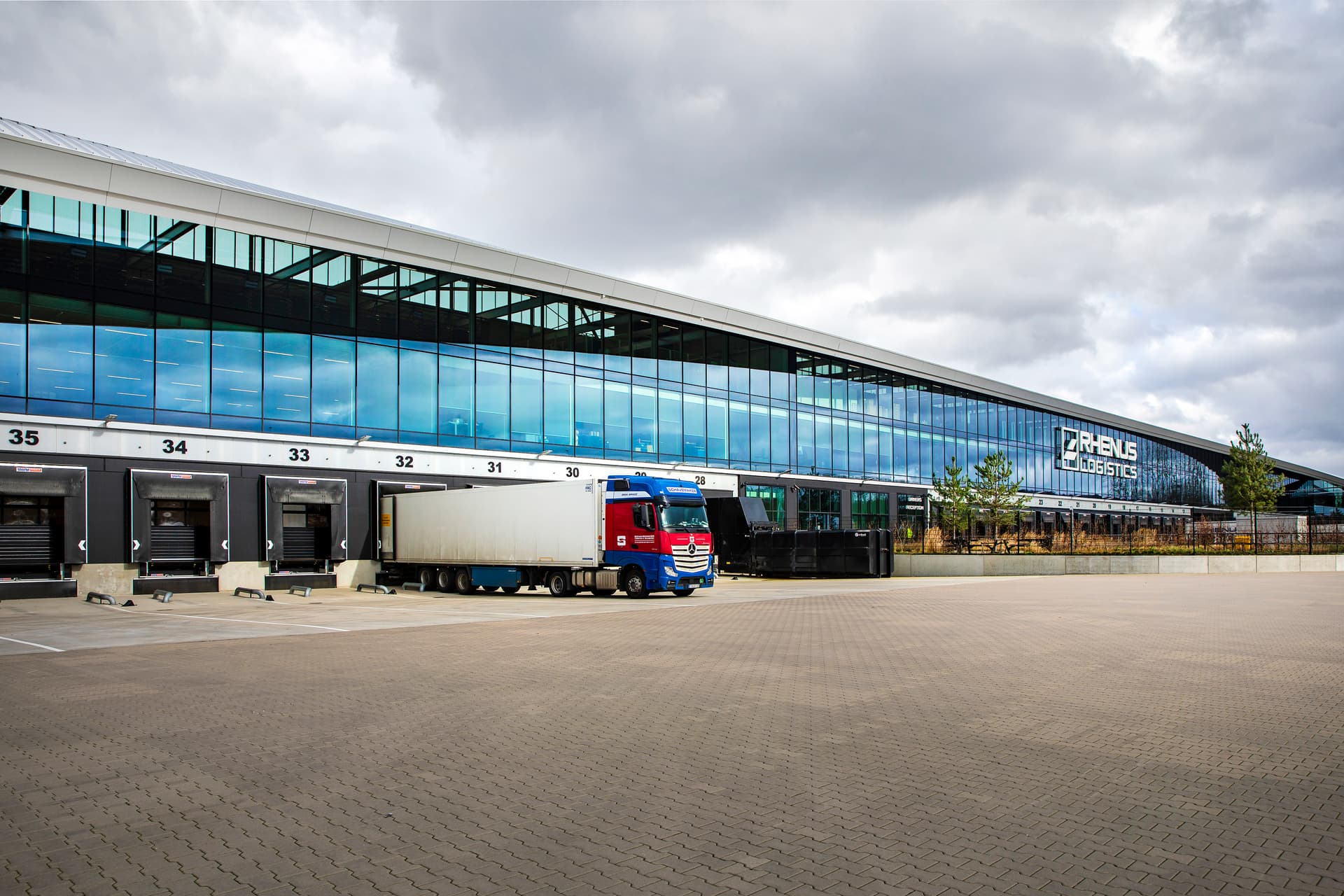

All types of vehicles

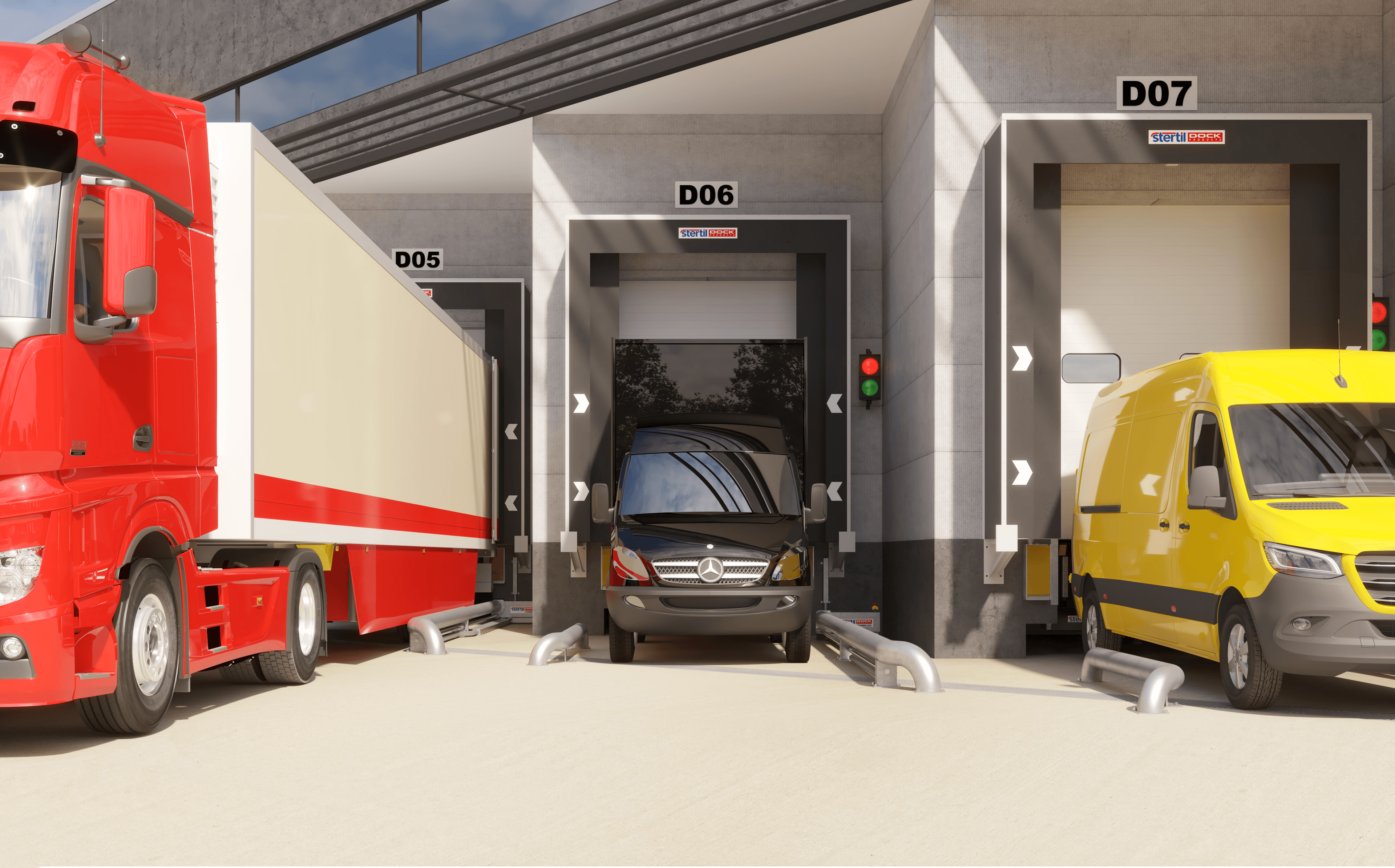

Telescopic lip adjusts between parcel vans and trailers

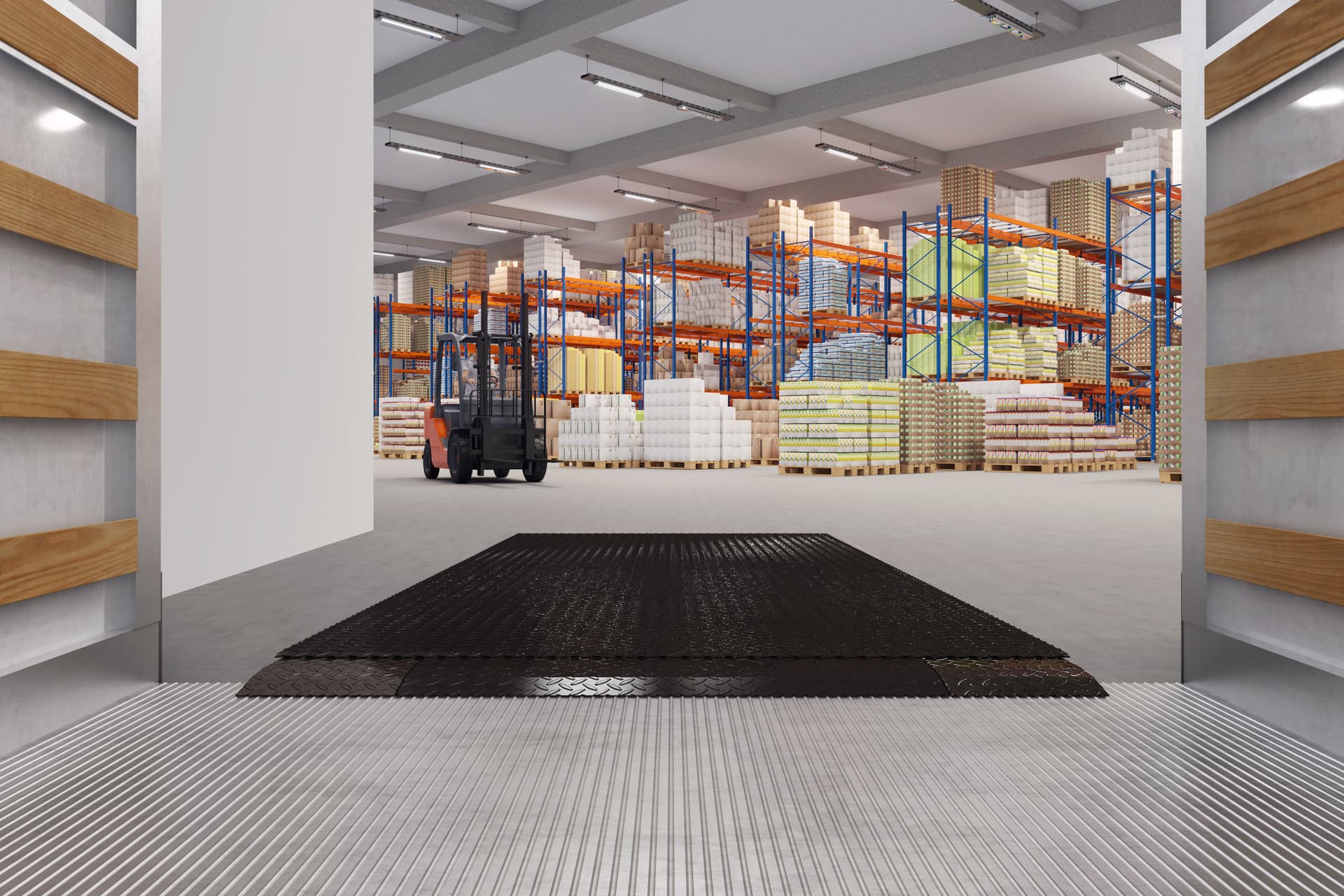

Commercial Vehicles
Standard width 2,000 mm

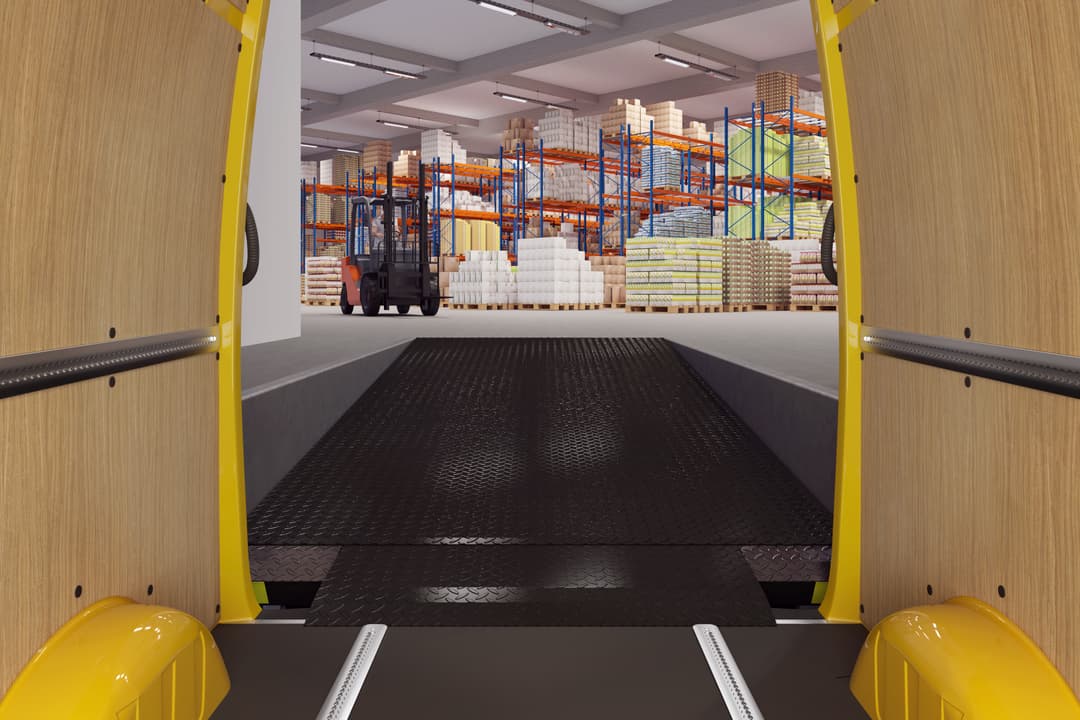

Parcel Vans
Mid-section width is 1,250 mm and both side sections 350 mm
Prevents damage to light vehicles and vans
Automatically controlled lip widths from 1,250 mm – 2,000 mm
Dynamic capacities of 6 and 8 tons (trucks) and 2 tons (vans)
1-Cylinder for perfect stability and less defects
Dynamic Capacity
8,000
mm
Max.
Platform Length
4,500
mm
Max.
Frame Height
950
mm
Max.
Working Range (above dock)
690
mm
Max.
Product Features
Product Features
Tested and Certified
Dock leveller tested to exceed 40,000 cycles. Meets European safety and quality standards for consistent performance.
Weight pressure compensation
Built-in Stertil® hydraulic weight compensation system detects the pressure on the leveller platform and adjusts the downward forces up to 150 kg.

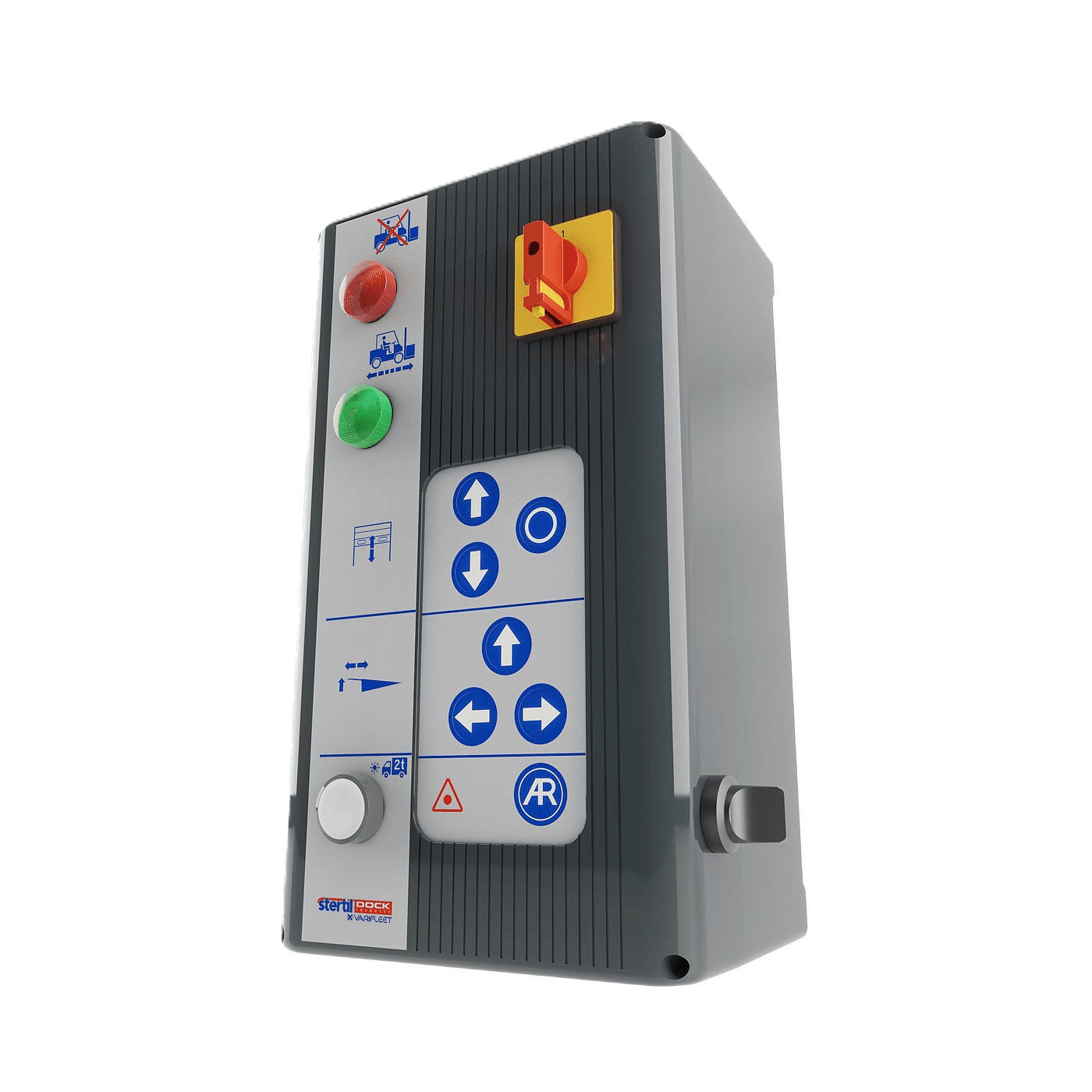

Intuitive control box
Full control during loading and unloading. LED buttons give clear status indication during use.
Optional Features
Optional Features
Frame executions
Various installation methods support fast setup and flexibility in pit types.
Brush or rubber draught seals
Prevents air leakage and supports climate control. Ideal for temperature-sensitive logistics environments.
Multi-control system
All-in-one control console allows the operation of the Varifleet, the dock shelter and the door from one control box.
Anti-slip coating with noise reduction
Optional coating for platform and lip, suitable for warehouse trolleys.
