Horizontal lip supports pallet trucks
The parallelogram lip stays level during operation. Enables safe use of manual pallet trucks and similar light equipment.

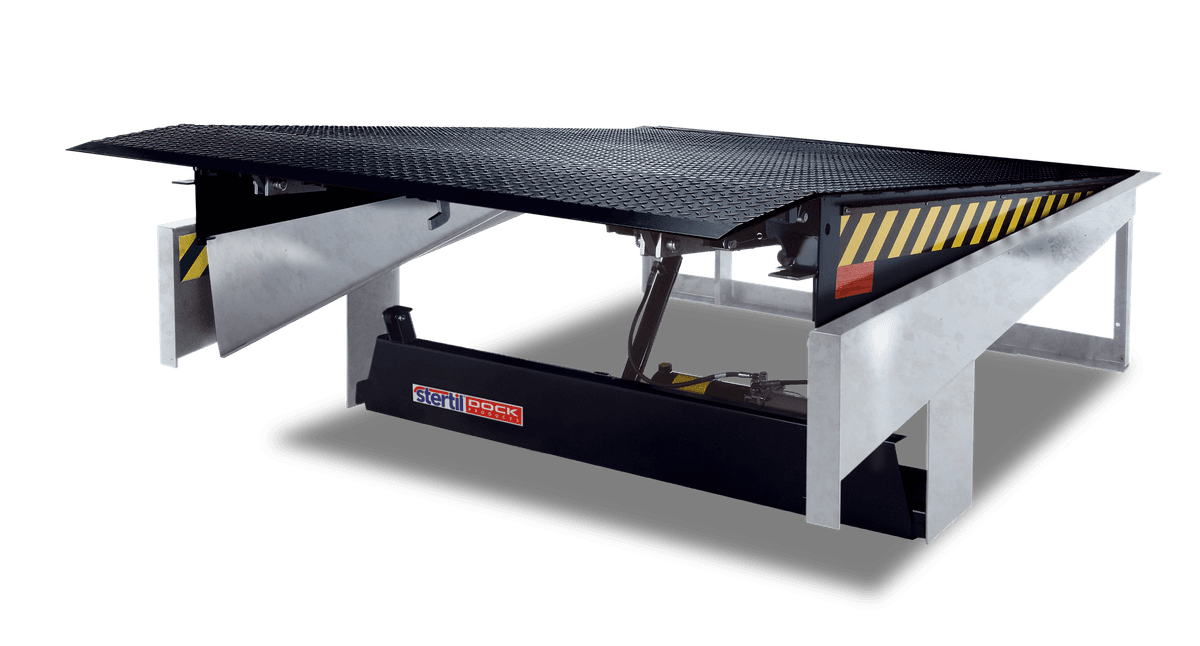

Ergonomic Swing-Lip Leveller
P-Series
P-Series hinged swing lip leveller ergonomic prevents injury and damage to personnel, products and warehouse equipment.
Dynamic capacity: 6 tonnes, flexible widths
Always horizontal lip in all positions, smooth transition
Low employee physical impact, reduced body vibration
Easy and smooth transition for all material handling equipment
Open front hinge mechanism, reduced maintenance
Reduce physical impact, vibration, and noise.
P-Series is always horizontal, ideal for manual material handling equipment.
Applications

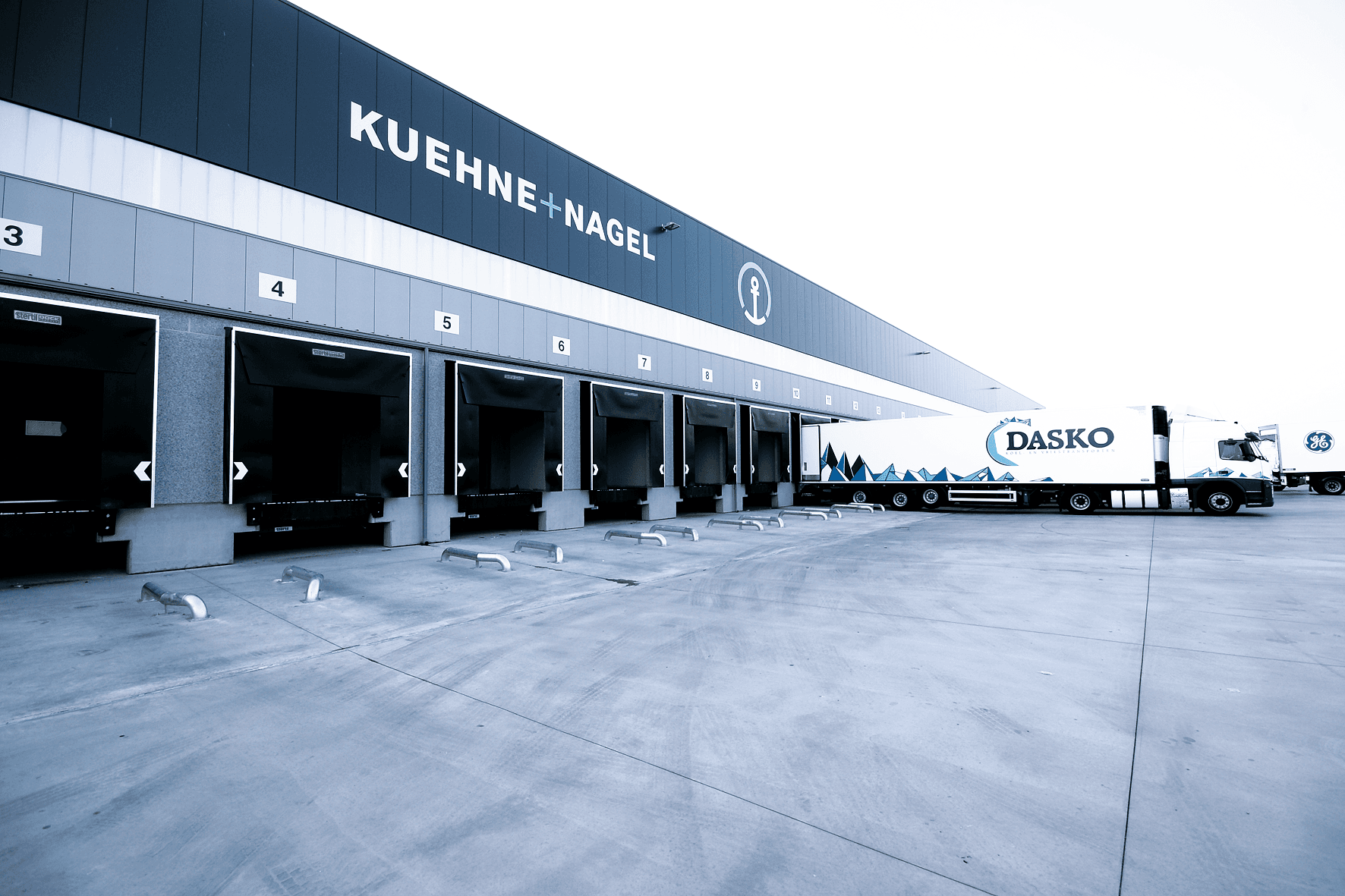

High-throughput distribution centres
Versatile application from LGW, HGW and everything in between

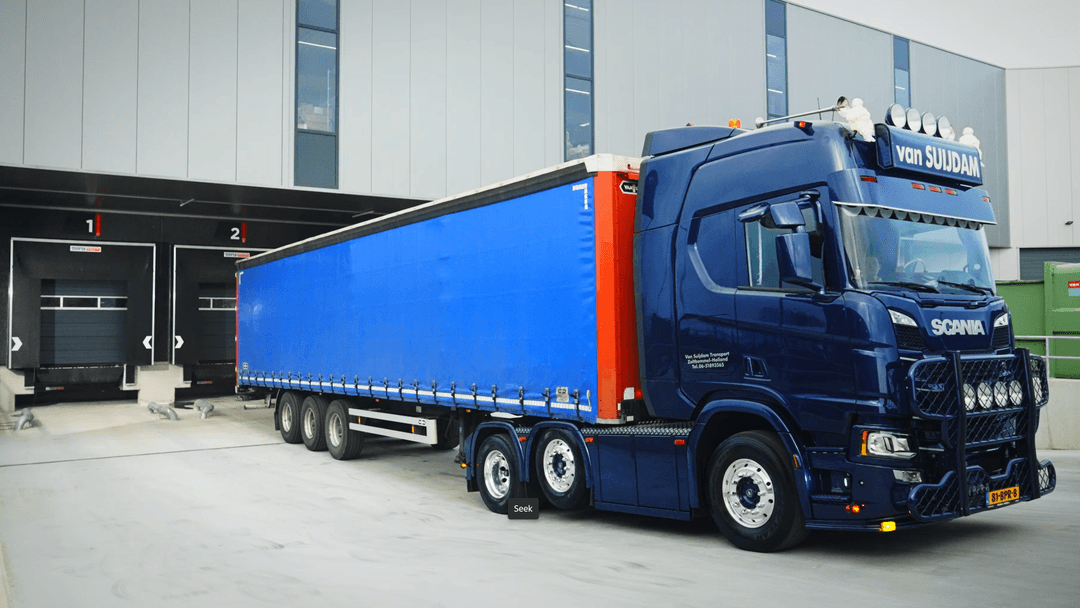

All trailer combinations
For standard trailers and vehicles with loading floors

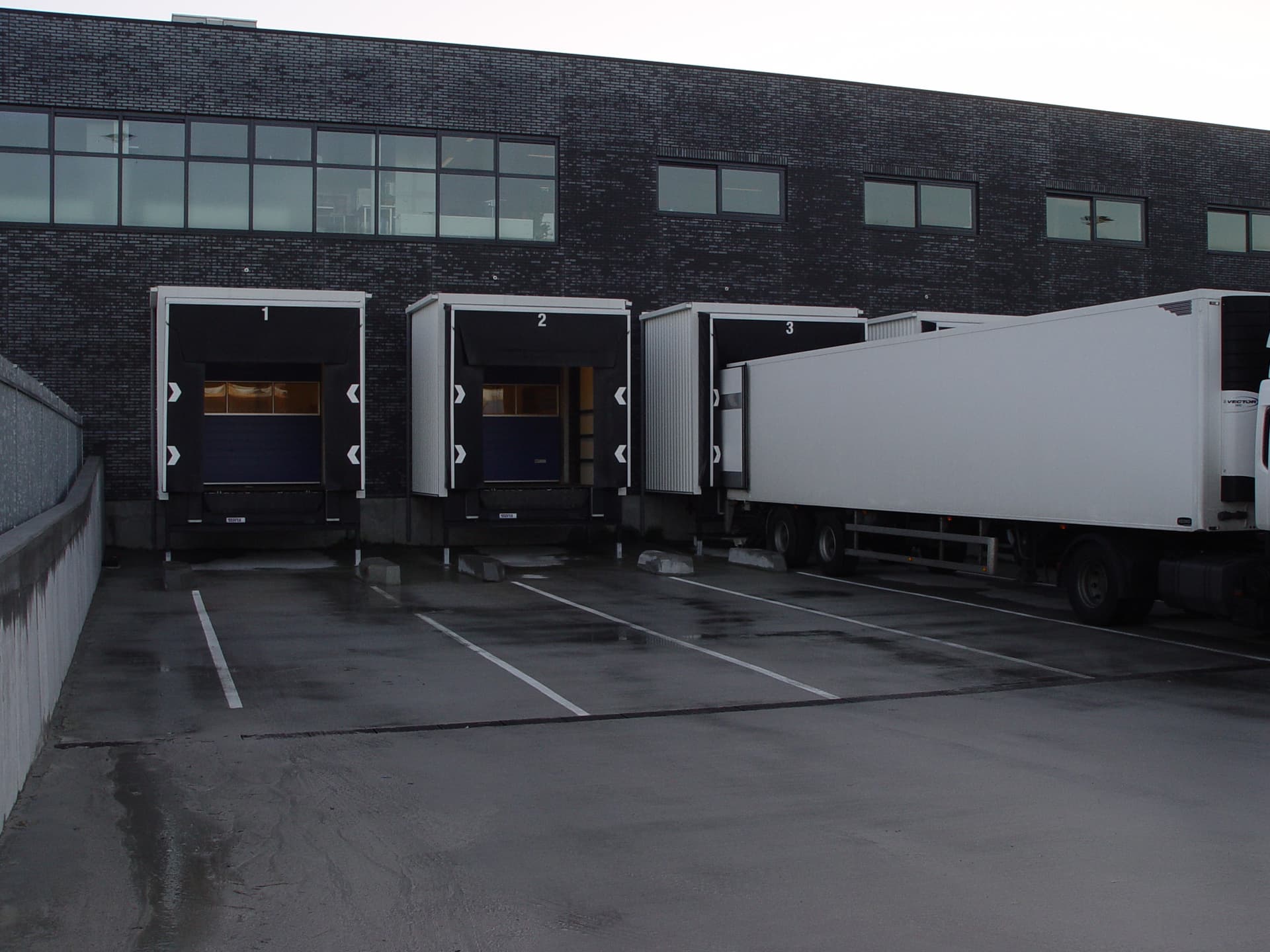

For valuable and perishable products
Electronics, food and other valuable stock

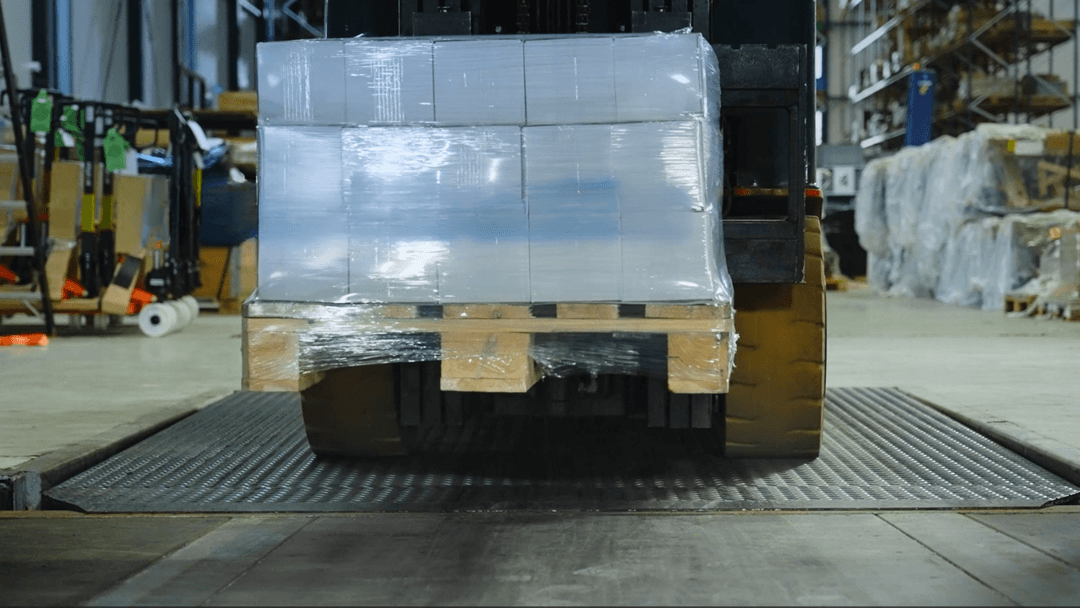

Low clearance forklift trucks
Prevents damage to MHE

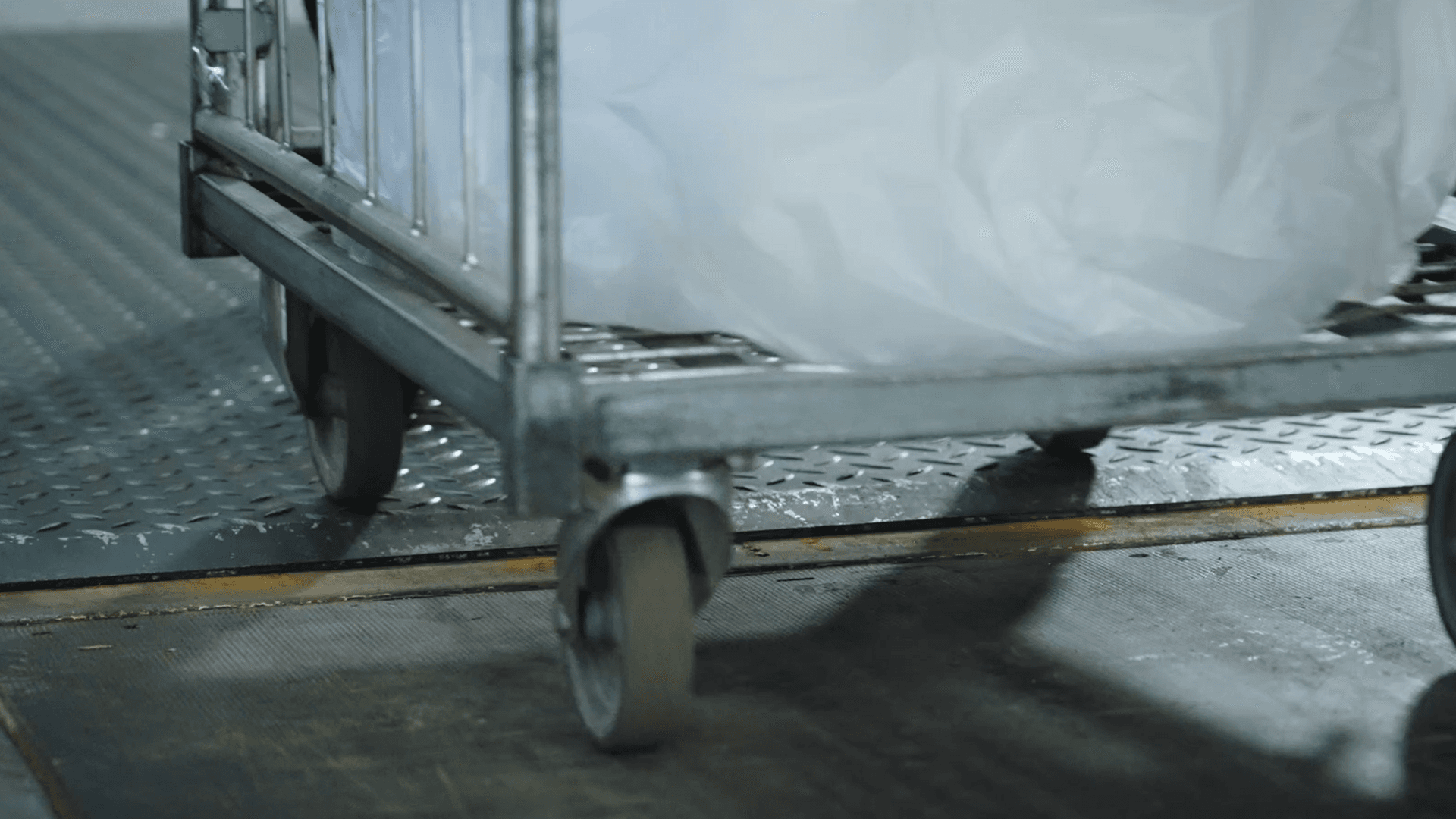

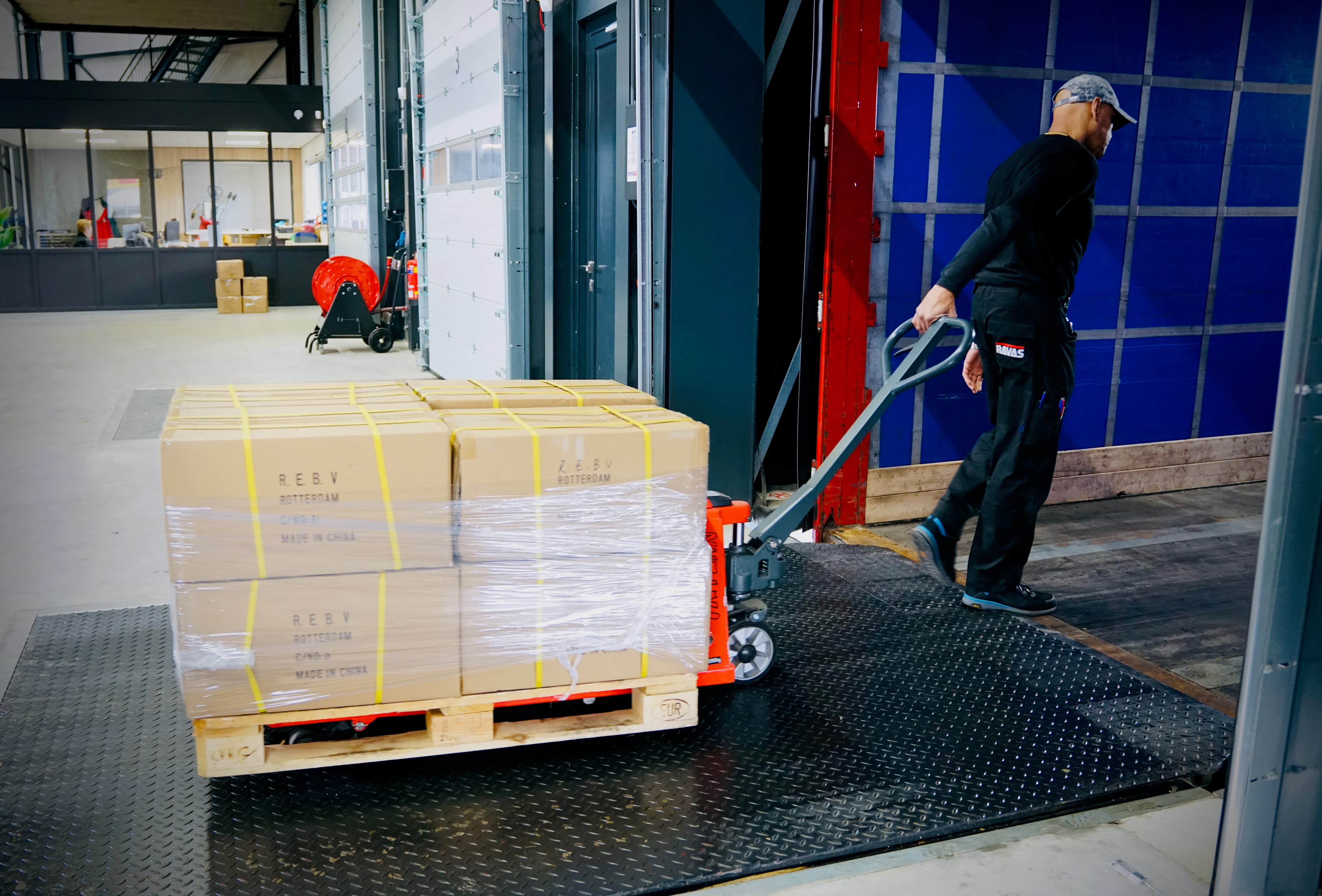

Ideal for manual trolleys
Reduced physical impact

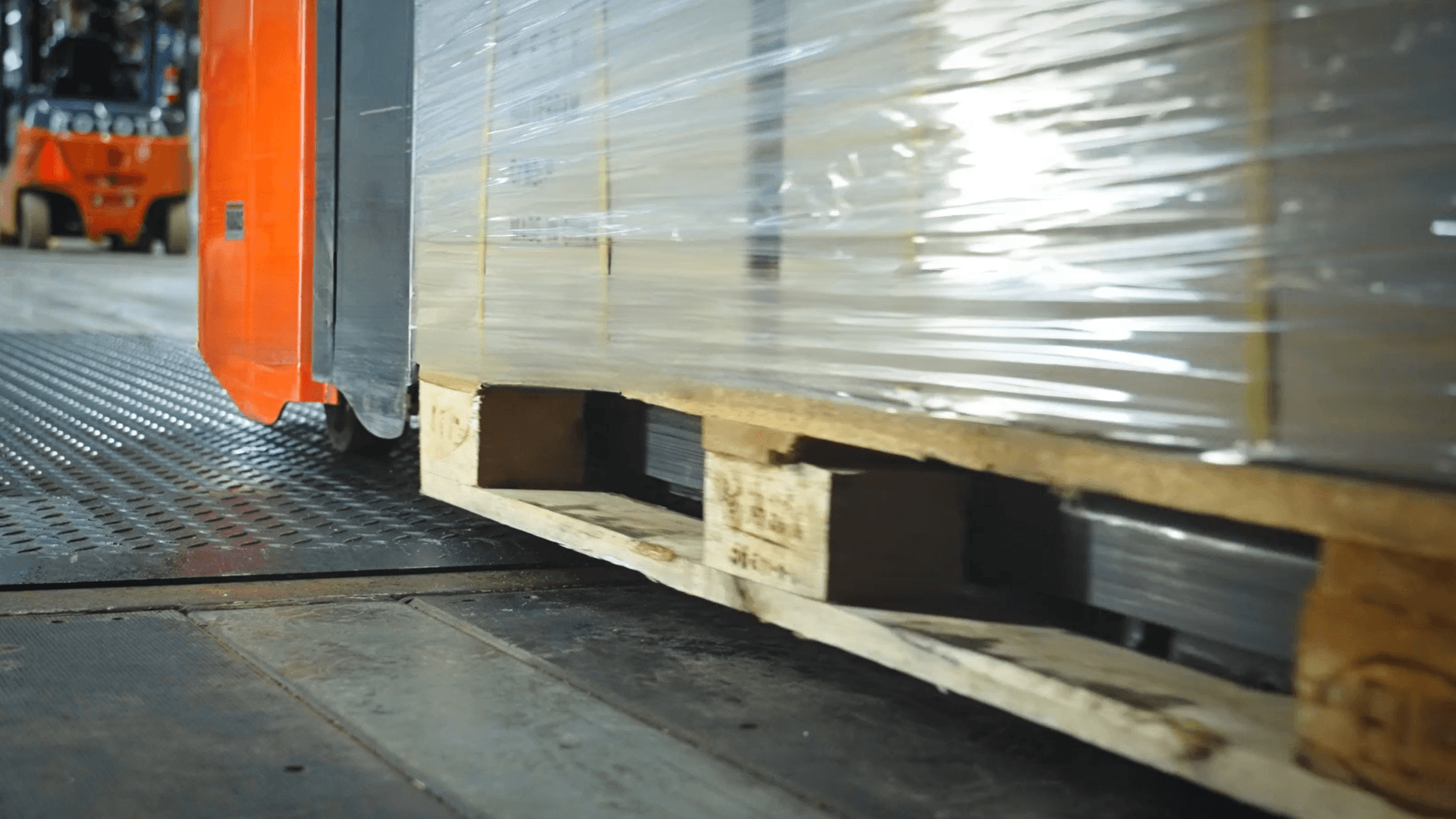

Docks with frequent pallet truck usage
Reduces damage to MHE

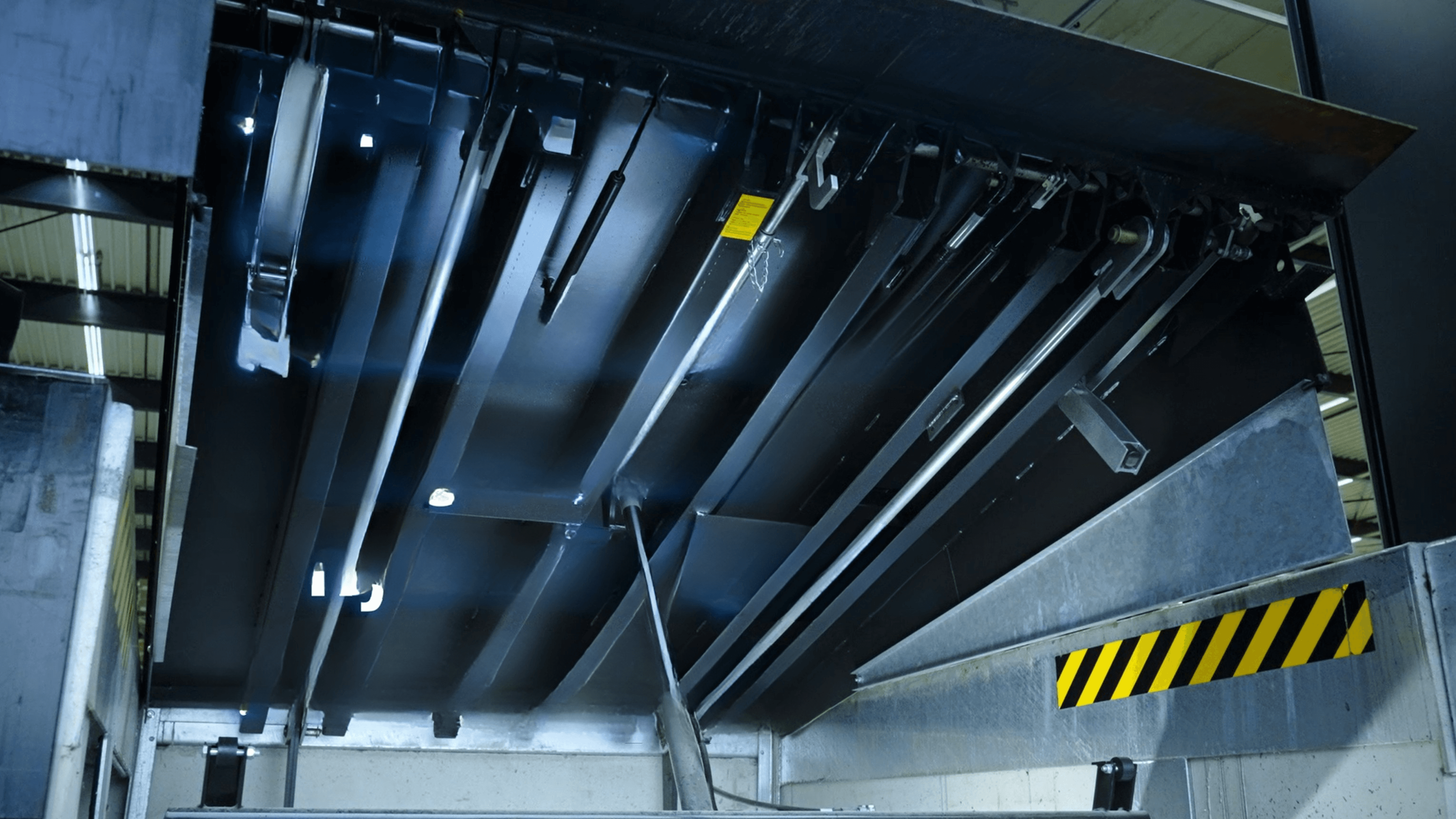

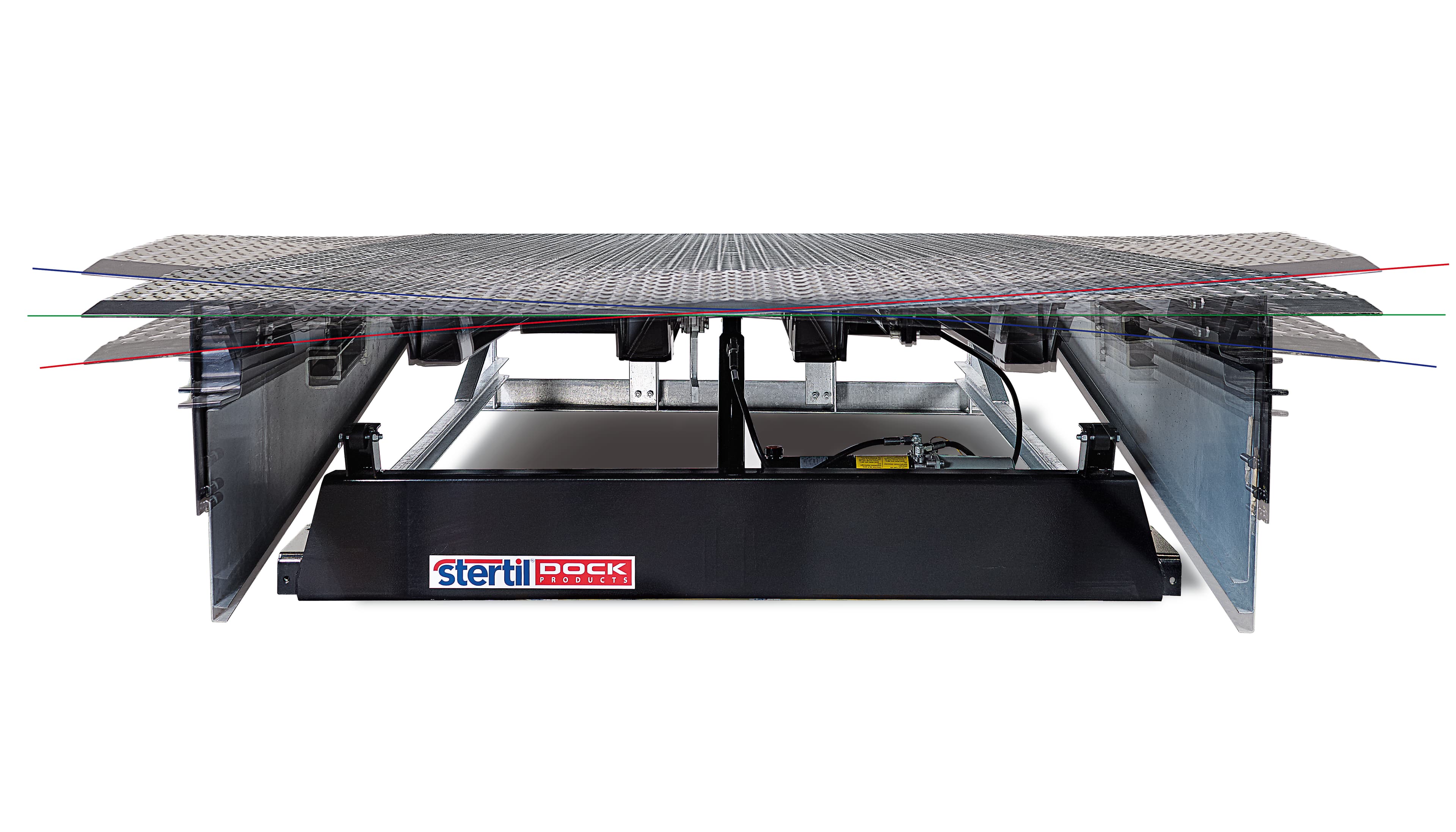

The unique parallelogram lip mechanism ensures the lip always remains perfectly horizontal
Dynamic Capacity
6,000
kg
Max.
Platform Lengths
4,500
mm
Max.
Lip Lengths
1,000
mm
Max.
Frame Heights
700
mm
Max.
Product Features
Product Features

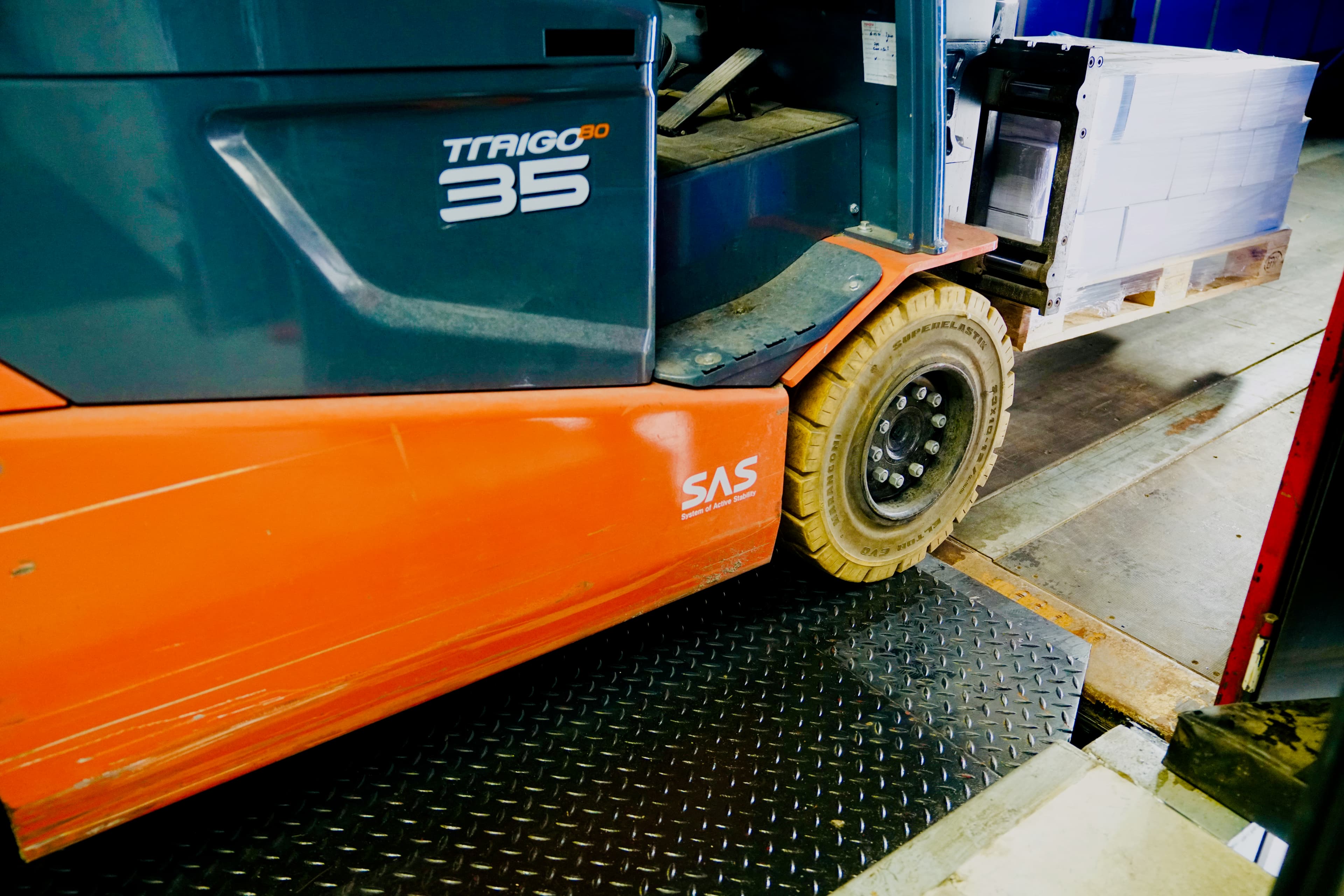

Prevents grounding with low-clearance vehicles
Minimises slope angle and vibration, especially beneficial for internal transport with limited ground clearance.
Closed rear hinge reduces prevents debris
Keeps platform debris-free
Compensates for uneven vehicle floors
Platform tilt up to 125 mm on either side supports safe transitions across non-uniform truck beds.
Optional Features
Optional Features
Choose platform and lip sizes
Lengths from 2000 to 4500 mm and lips up to 1000 mm accommodate a wide range of vehicles and dock layouts.
Choose installation frame
Widths from 1750 to 2250 mm, lengths up to 4500 mm. Lip options include 405 mm or 500 mm with optional tapered lip for smoother contact.
Choose Interlocking Smart Controls
Stertil Master Controls for Interlocking Sequence for Doors and levellers

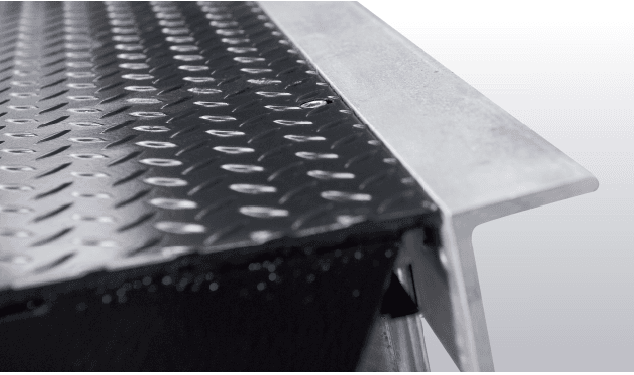

Reduce slip risk and noise
Anti-slip coating improves grip and lowers loading noise by up to 10 dB. Enhances safety and working conditions.
Customer Stories
"We are manufacturers of mobile weighing devices which are attached to material handling equipment. We supply internationally and we chose Stertil Dock Products as both supplier of both the doors and the loading bays including this very ergonomic swing lip levellers. We chose the P-Series because it always stays in a horizontal position makin it more safe for our warehouse staff. It is easy to operate and can be used for a variety of trailers and vehicles with varying heights.".
Safety & maintenance
Use, Maintenance & Norms
All P‑Series Ergonomic Swing Lip Levellers comply with EN 1398, covering their design, construction, installation, maintenance, and testing.
Lip hinge prevents dirt accumulation
Maintenance supports included
Auto park and emergency stop functions
Noise-reducing anti-slip coating available
Regular service and technical documentation provided
Trusted by industry standards worldwide
